SM PM fiber coupled 1550nm SOA optical amplifier for optic connection and switch
The Semiconductor Optical Amplifier Devices at 1310nm and 1550nm are designed by using a high quality angled SOA chip and a TEC which can assure a stable amplified output for a large dynamic input signal.

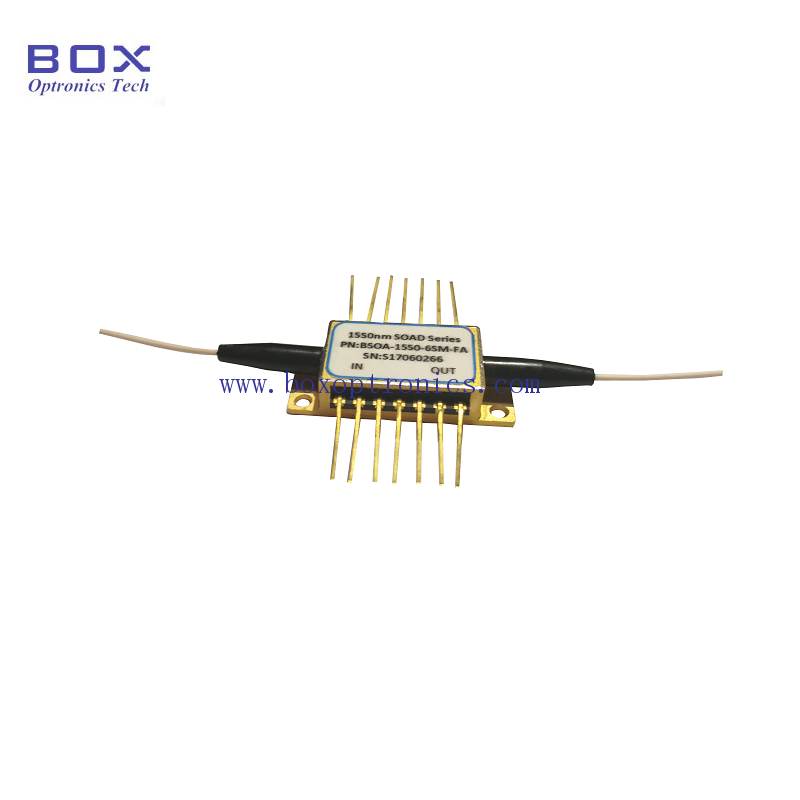

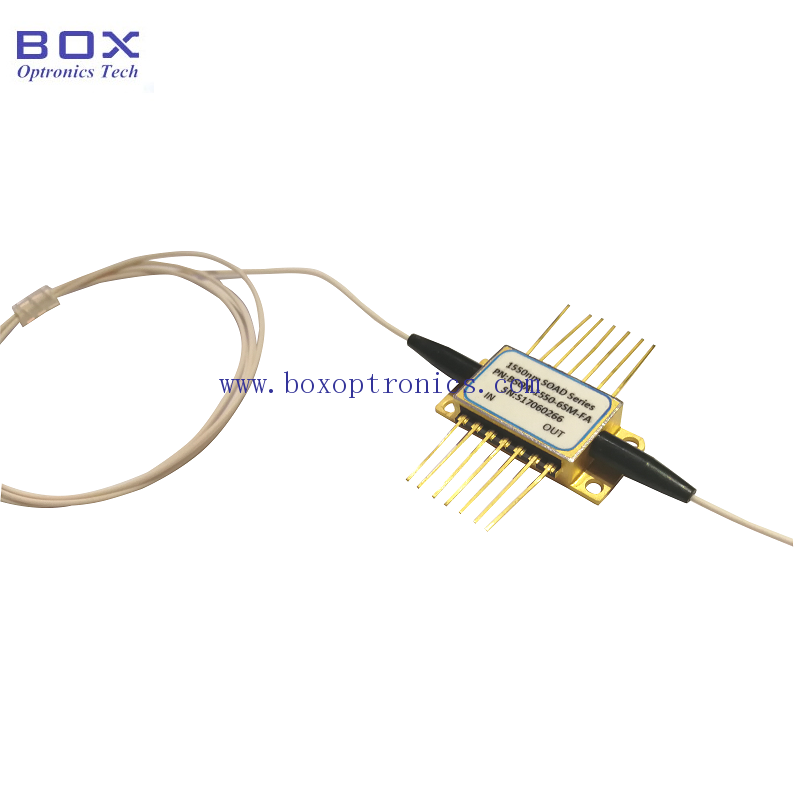

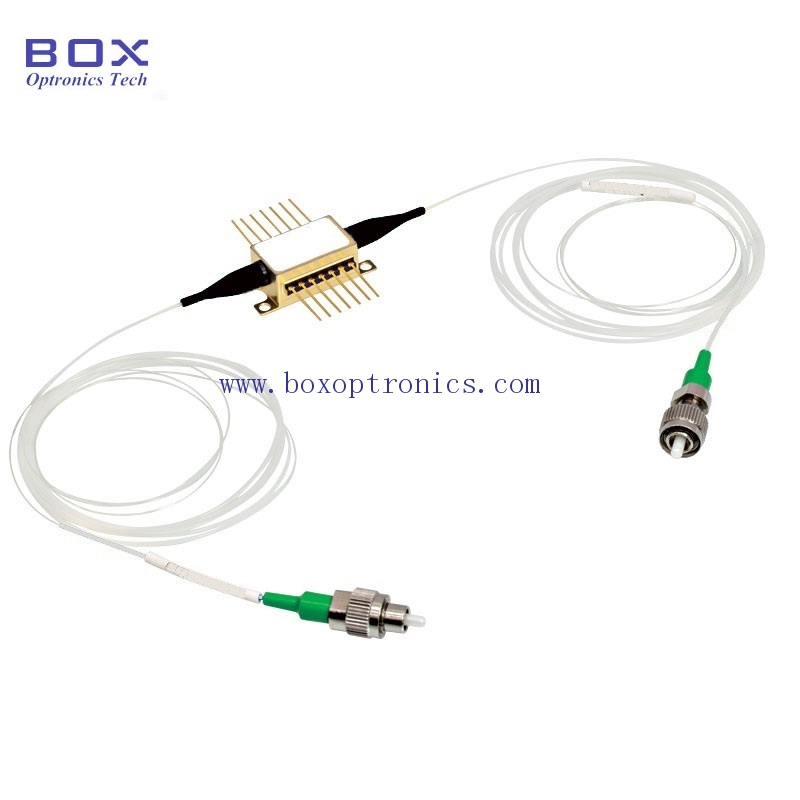

The devices are available in a standard, 14-pin butterfly package at the 1310nm and 1550nm bands. The SOA devices have high optical gain, high saturation output power, low polarization dependent loss, low noise figure and broad wavelength range. We have options of optical isolators for input and/or output side as well as output fibers of SM fibers, PM fibers and other special fibers per customer specifications. The products are Telcordia GR-468 qualified, and in compliance with RoHS requirement.

File Name : Format: Size:

Description Feedback
Features
Wide Optical Bandwidth;
High saturation output power;
Low polarization sensitivity;
Built-in TEC and optical isolator;
Low gain ripple and NF.

Applications
Loss compensation for fiberoptic connection and switch;
WDM fiberoptic networks;
100G fiberoptic data center.

Electro-Optical Parameters

Parameter

Symbol

Condition

Min.

Typ.

Max.

Unit

Center Wavelength

λc

TL=1535℃ CW

1510

1550

1570

nm

3dB Optical Bandwidth

Δλ3dB

-

50

-

-

nm

3dB saturation output power

Psat

CW

6

8

-

dBm

Small Signal Gain@λc(Over C-Band @ Pin = -25 dBm)

Gmax

-

13

16

-

dB

Gain Ripple with Respect to λ

ΔG

-

-

0.5

1.0

dB

Noise Figure

NF

-

-

10

-

dB

Polarization Dependent Gain

PDG

-



2.0

3.0

dB

Optical Isolation

ISO

-

30

-

-

dB
