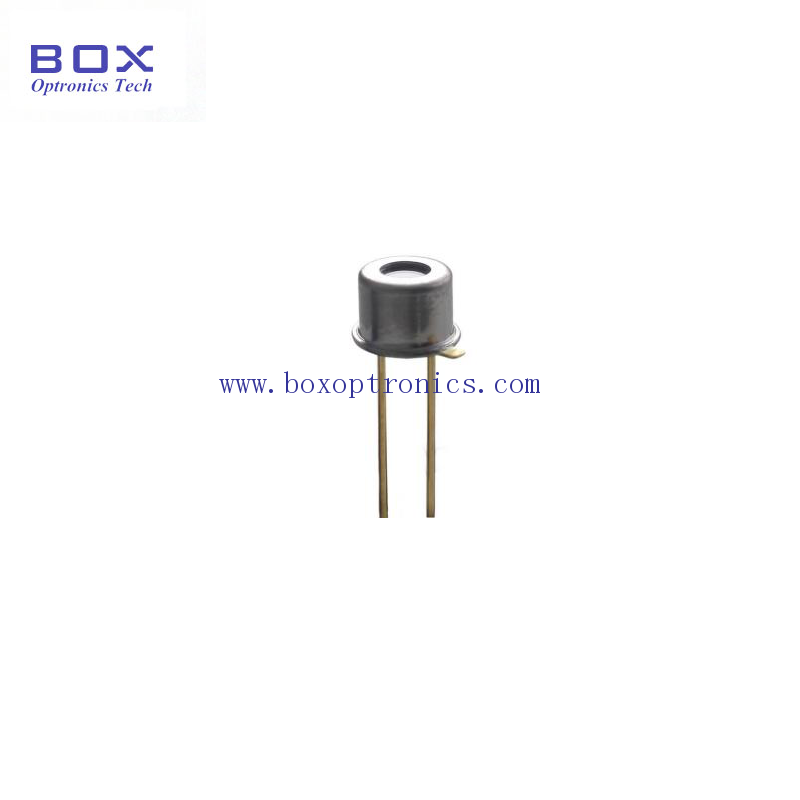

1.5mm UV 230-390nm PIN photodiode TO-18 CAN

The UV-photodiodes based on SiC (Silicon Carbide) provide the unique property of. extreme radiation hardness, near-perfect visible blindness, low dark current, high speed and low noise.

File Name : Format: Size:

Description Feedback

Features

Blindness to visible light without optical filter;

Wavelength 230-390nm, Full UV Band Monitoring;

High reliability，low dark current;

Top illumination planar PD;

Active diameter 1.5mm;

TO18 Can with flat-window.

Applications

UV sensors;

Spectroscopy;

UV exposure meters;

UV source monitors;

Medical engineering (dermatology);

Sterilization Lamp Monitoring;

Space light detect equipment;

Gas burner flame;

Measurement and control of ecological parameters;

Radiation control for a solarium;

UV water purification facilities.

Electro-Optical Parameters

Parameters	Symbol	Test conditions	Value	Unit
Detection range	λ_d	-	230-390	nm
Detect area	Φ	10% Rp	1.5x1.5	mm
Responsivity	Re	V_R=0V,λ=350nm	0.13	mA/mW
Dark current	ID	0.1V	5	nA
Reverse break voltage	V_BR	I_R=10uA	2	V
Saturated optical power	P_S	V_R =0V	1.5	mW
Operating voltage	V_R	-	0-0.1	Vd
Package	TO-18

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
