2.5Gbps APD-TIA TO-46 package with built-in TIA amplifier
This photodetector module integrates an InGaAs avalanche photodiode (APD) and a trans-impedance amplifier (TIA) inside a compact optical fiber pigtailed package. It provides photon detection with high bandwidth and high optical sensitivity. This module is ideal for applications in digital optical communication systems.

File Name : Format: Size:

Description Feedback
Features
Work rate 2.5Gbps;
The operating wavelength is 1100-1650 nm;
3.3V Operating voltage;
APD reverse breakdown voltage 42V;
InGaAs APD Photodiode with High responsivity;
Standard 5PIN TO-46 package with built-in TIA amplifier.

Applications
Telecom;
Data transmission.

Electro-Optical Parameters

Parameter

Symbol

Min.

Typ.

Max.

Test conditions

Unit

Operating Voltage

VCC

3.0

3.3

3.6



V

Breakdown Reverse Voltage

VBR

40

42

50



V

Dark Current

ID





10

VR=VBR-3V,φ=0uw

nA

Operating Current

ICC

25

30

35

No load

mA

Operating Wavelength

λ

1100



1650



nm

bandwidth

BW



1800



-3dB ,-27dBm

MHz

Output impedance

Rout



100



Differential VOUT+ to VOUT-

Ω

Sensitivity

S

-31

-32



Extinction ratio 10d BER10-10

dBm

Saturated optical power

Pmax

-3

0





dBm


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

Relate Products
  • 5000um InGaAs Photodiode TO-CAN
    5000um InGaAs Photodiode TO-CAN
  • 1mm PD TO46 InGaAs Photodiode
    1mm PD TO46 InGaAs Photodiode
  • 0.5mm InGaAs PIN Diode TO
    0.5mm InGaAs PIN Diode TO
  • Adjustable optical fiber attenuator
    Adjustable optical fiber attenuator
  • 2mW 1470nm DFB CWDM receptacle laser with isolator
    2mW 1470nm DFB CWDM receptacle laser wit...
  • 4PIN 1290nm DFB CWDM TOSA package laser diode
    4PIN 1290nm DFB CWDM TOSA package laser ...
  • High performance 1590nm TO56 DFB laser diode TO-CAN
    High performance 1590nm TO56 DFB laser d...
  • High power 40mW 1310nm DFB chip laser fiber coupled butterfly package
    High power 40mW 1310nm DFB chip laser fi...
  • Low cost PM fiber coupled 1290nm 20mW butterfly laser module
    Low cost PM fiber coupled 1290nm 20mW bu...
  • 1310nm 10mW SM pigtailed LD module with butterfly BTF package
    1310nm 10mW SM pigtailed LD module with ...
  • 1291.10nm LAN Local Area Network wavelength laser diode
    1291.10nm LAN Local Area Network wavelen...
  • 1X2 Polarization maintaining circulator Fast axis blocked
    1X2 Polarization maintaining circulator ...
  • High power circulator
    High power circulator
  • High power isolator
    High power isolator
  • 600mW 980nm Pump laser module with FBG
    600mW 980nm Pump laser module with FBG
  • LAN WDM Butterfly laser diode with TEC
    LAN WDM Butterfly laser diode with TEC
  • 1310nm SOA Semiconductor Optical Amplifier
    1310nm SOA Semiconductor Optical Amplifi...
  • 1310nm DFB Laser Module for Analog RF application
    1310nm DFB Laser Module for Analog RF ap...
  • 1653nm Butterfly laser for methane detection
    1653nm Butterfly laser for methane detec...
  • SOA Semiconductor optical amplifier
    SOA Semiconductor optical amplifier
  • 1480nm Pump laser source
    1480nm Pump laser source

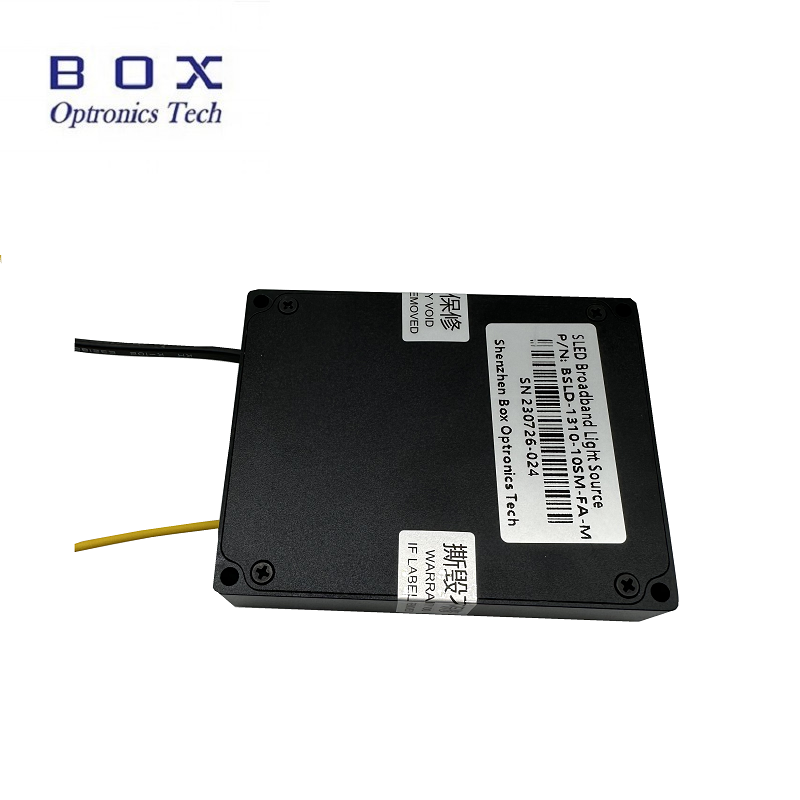

  • 1310nm SLED Broadband light source
