Manufacturer 1064nm enhanced silicon 500um avalanche photodiode for OTDR

The enhanced Silicon Avalanche Photodiodes (Si APDs) are intended for use in a wide variety of broadband low-light-level applications covering the spectral range from below 400 to over 1100nm.

File Name : Format: Size:

Description Feedback

Features

High reliability, low dark current;

Top illumination Planar APD;

1064nm responsivity 0.37A/W;

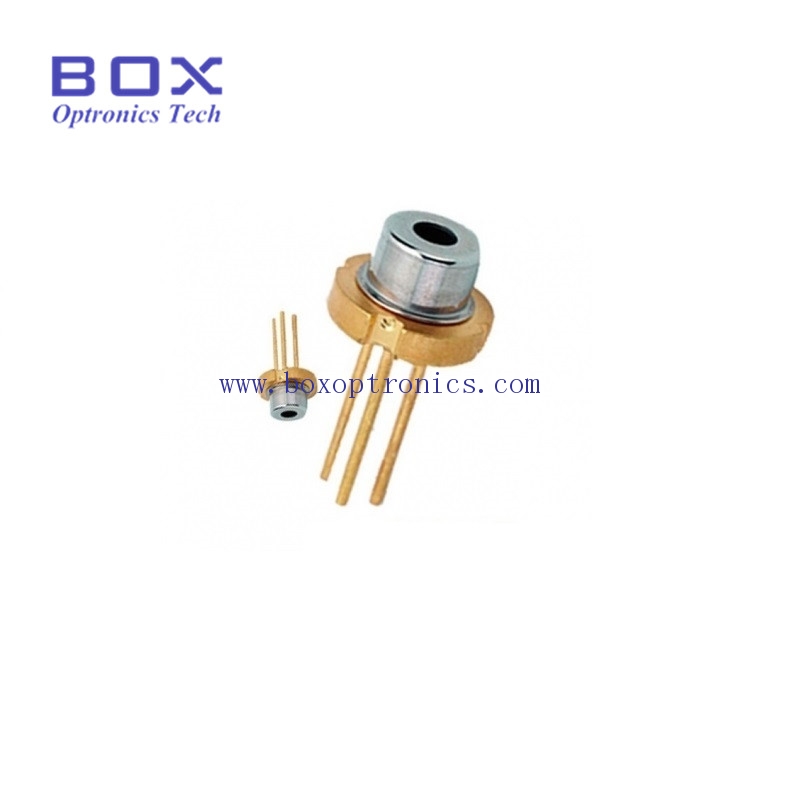

TO46-Can hermetical package.

Applications

Ultra Weak pulse optical detecting;

Laser lidar, laser range finding;

OTDR;

High resolution Optical Coherence Tomography.

Electro-Optical Parameters

Parameters	Symbol	Test conditions	Min.	Typ.	Max.	Unit
Response Spectrum	λ	—	400～1100			nm
Active diameter	φ	—	500			μm
Reponsivity	Re	λ=905nm,1μw, M=1		0.65		A/W
Reponsivity	Re	λ=1064nm, 1μw, M=1		0.37		A/W
Multiplication gain	M	λ=1064nm, 1μw, 0.8V_BR		100
Multiplication gain	M	λ=1064nm, 1μw, 0.85V_BR		200
Response time	Tr	M=100,RL=50Ω,λ=1064nm	.	2.5		ns
Total capacitance	Ctot	M=100,f=1MHz		1.2		pF
Reverse breakdown voltage	VBR	I_R=10uA	220	280	580	V
package	TO46-CAN

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
