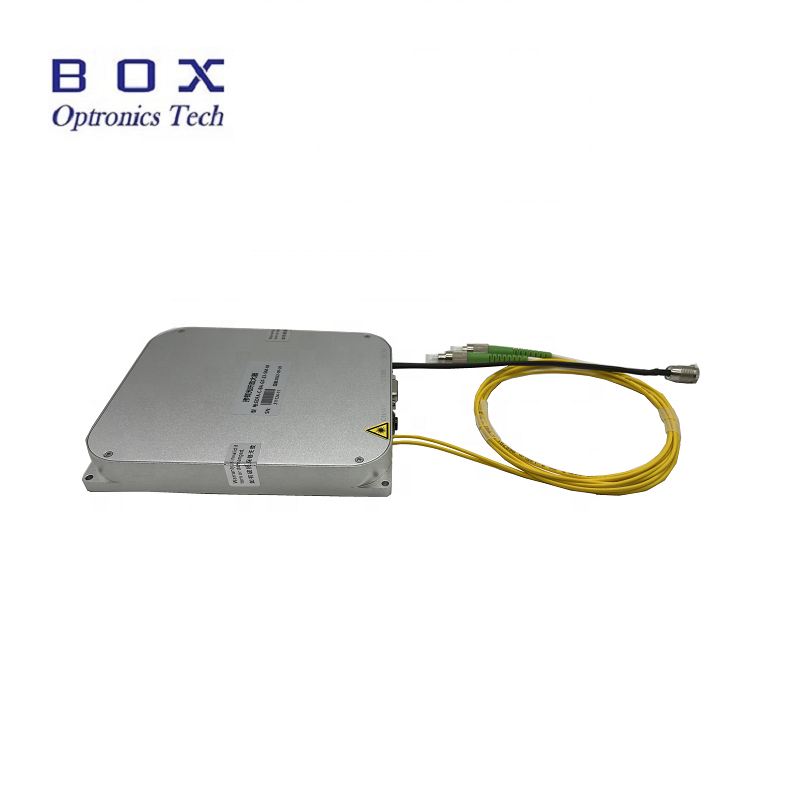

1030nm 20mW ASE broadband light source SM fiber for Medical imaging
1030nm ASE broadband light source is based on ytterbium doped fiber and semiconductor pump lasers, with 1030nm spectral coverage and high output power. suitable for fiber optic device testing, FBG grating production, etc.

File Name : Format: Size:

Description Feedback

1.Description：1030nm ASE broadband light source is based on ytterbium doped fiber and semiconductor pump lasers, with 1030nm spectral coverage and high output power. suitable for fiber optic device testing, FBG grating production, etc.

2.Features:
Spectral flatness;
Adjustable output power;
High stability output power.

3.Applications:
Fiber sensing;
Medical imaging;
Fiber optic device testing.
4.Electro-Optical Characteristics：

参数

Parameters

单位

Unit

参数

Values

备注

Notes

中心波长 Center wavelength

nm

1030±2



光谱范围 Spectral range

nm

1018~1044

@10dB

输出光功率 Output power

mW

10

20

30

50

100



功率调节范围 Power regulation range

-

10%~100%

Optional

光谱平坦度 Spectral flatness

dB

≤3@10/20/50/100mW, ≤6dB@200mW



输出端隔离度 Output isolation

dB

≥35



光功率稳定性 Power instability

dB

≤±0.02(15min.);

≤±0.05(8hrs)

≤±0.5%;

≤±1.2%

偏振消光比 PER

dB

≤0.2

≥23



尾纤和接头类型 Pigtail fiber

-

Hi1060

PM980

FC/APC



通信接口Communication interface



-

Touch screen/DB9 Female(RS232)

Benchtop

DB9 Female(RS232)

Module

供 电 Power supply



-

AC 110~240V, <30W

Benchtop

DC 5V, <15W

Module

尺 寸 Dimensions



mm

260(W)×280(D)×120(H)

Benchtop

150(W)×125(D)×20(H)

Module

 Operating temperature

℃
