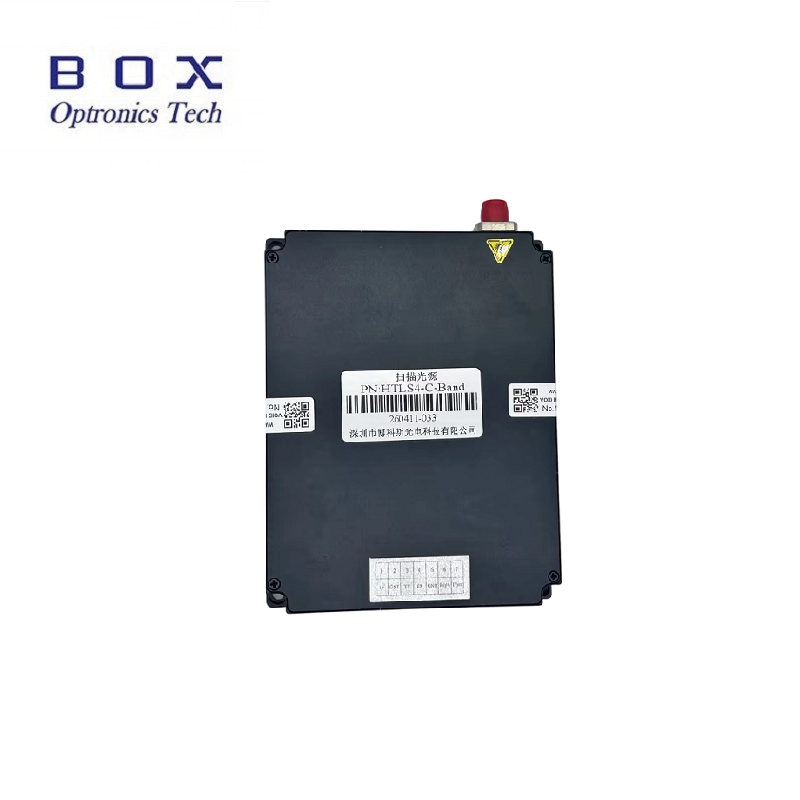

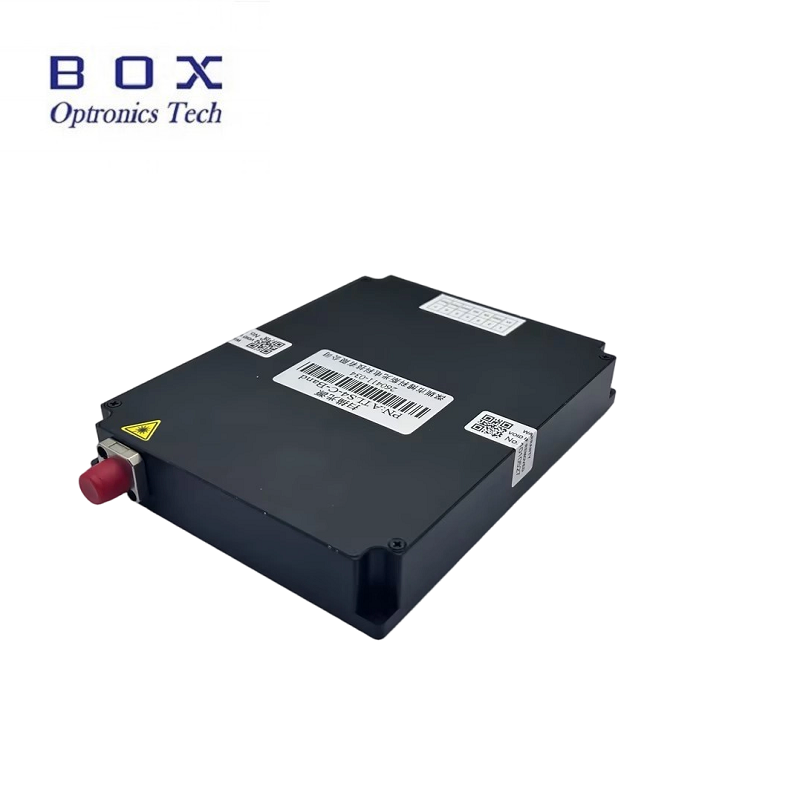

40nm 1525-1568nm C-band Tunable Laser Module

ATLS4-C-Band Tunable Laser Module features a wide wavelength range, precise wavelength, stable power, high scanning speed, and high cost - performance ratio. It is widely used in fiber Bragg grating demodulation systems and optical passive device testing systems.

File Name : Format: Size:

Description Feedback

PN	ATLS4-C-Band
Wavelength range	> 40nm(Typ.:1525-1568nm)
Tuning speed	(step)Typ.: ≤ 100us
Scanning speed	< 40nm/s（step 10pm）
Scanning step size	Typ. 10pm
Absolute wavelength accuracy	+/-10pm Typ. <5pm
Relative wavelength accuracy	+/-5pm Typ. <2pm
Wavelength repeatability	<3pm
Wavelength stability	<+/- 2pm
Output power	>10dBm
Power stability	+/-0.05dBm
Power flatness	≤±0.3dB
Side mode suppression ratio	>35dB
Relative intensity noise	<-135dB/Hz
Linewidth (static)	<5MHz
Connector	FC/APC
Operating temperature	-20℃~-65℃
Power consumption	5 V / 2A Typ <5w
Dimension	LWH = 134mm * 104mm * 21mm

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
