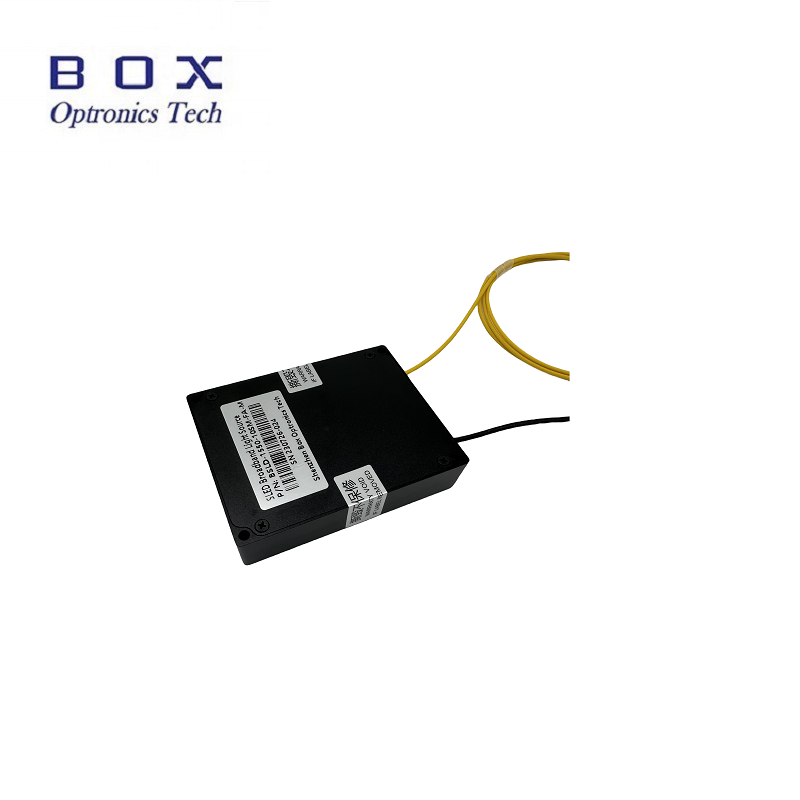

High power 840nm 20mW SLD Broadband Light Source for Industrial OCT technology

The 840nm SLD broadband light source adopts semiconductor super radiation diode technology to output broadband spectrum and has high output power, which is suitable for optical fiber sensing and other applications. Communication interface and host computer software can be provided to facilitate the monitoring of light source status.

File Name : Format: Size:

Description Feedback

1.The 840nm SLD broadband light source adopts semiconductor super radiation diode technology to output broadband spectrum and has high output power, which is suitable for optical fiber sensing and other applications. Communication interface and host computer software can be provided to facilitate the monitoring of light source status.

2.Features:

Ultra wide spectrum;

Low spectral ripple;

20mW High output power;

Customizable size.

3.Application:

Industrial OCT technology;

Optical fiber sensing;

Medical imaging;

Optical coherence tomography.

4.Electro-Optical Characteristics:

Parameters	Unit	Value	Note
Operating wavelength	nm	840	±20
Output power	mW	>20	Customizable
-3dB Bandwidth	nm	>45
Short-term stability	dB	≤±0.02/15 min
Long-term stability	dB	≤±0.05/8 hours
Optical isolator	dB	Without
Fiber connector	-	FC/APC	Customized
Fiber type	-	CS780 or PM850
Demension	mm	195(W)×220(D)×120(H)	Benchtop
Demension	mm	70(W)×90(D)×18(H)	Module
Power supply	V	AC 110~240V	Benchtop
Power supply	V	DC 5V/4A	Module
Communication interface	-	DB9 Female(RS484)	Module
Operating temperature	℃	-5 ~ +55
Storage temperature	℃	-40 ~ +85
