5W 808nm 105/125um Multimode Fiber High-Power Pump Source module-DFB laser | SLED Module

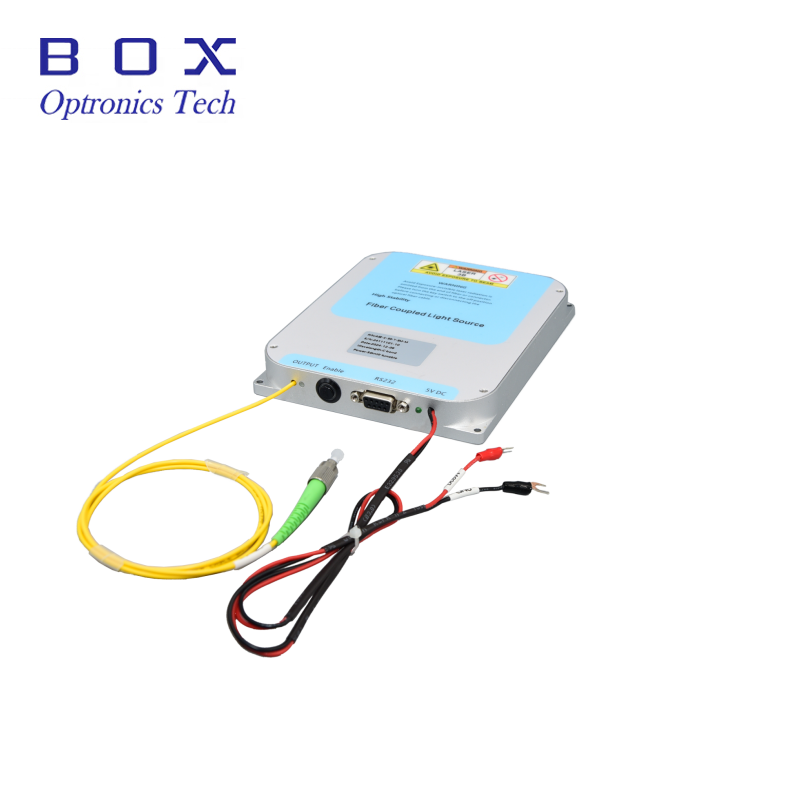

5W 808nm 105/125um Multimode Fiber High-Power Pump Source module

The 808nm high-power laser source is based on a high-performance semiconductor laser chip, with 105/125um fiber-coupled output, designed constant-current driving circuit ensures safe and stable operation of the laser. suitable for applications in fiber laser pumping, biomediciner and so on.

File Name : Format: Size:

Description Feedback

1. Features：

High output power;

High stability;

Module or desktop packaging.

2. Applications：

Fiber laser pumping;

Biomedicine;

Material laser processing.

3.Photoelectric properties:

Parameters	Unit	Min.	Typ.	Max.	Notes
Operating wavelength	nm	803	808	813
Output power	W	3.5	5
		8	10
		18	20
Operating mode	-	CW
Power instability	dB	≤±0.02(15min.); ≤±0.05(8hrs)			≤±0.5%; ≤±1.2%
Fiber type	-	105/125 or 200/220			0.22NA
Fiber connector	-	FC/PC or SMA
Communication interface	-	DB9 Female(RS232)
Demension	mm	125(L)×150(W)×31(H)			Module
Demension	mm	195(W)×220(D)×120(H)			Benchtop
Power supply	VDC	12V/15A			Module
Power supply	VAC	100-240VAC			Benchtop

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
