1310nm 13db SOA Semiconductor Optical Amplifier for optical switch
used for optical signal amplification and can significantly increase the output optical power. The products feature high gain, low power consumption, and polarization maintenance, among other characteristics, and are fully processable with domestically controllable technology.

File Name : Format: Size:

Description Feedback
1.Description:
The Semiconductor Optical Amplifier (SOA) product series, is primarily used for optical signal amplification and can significantly increase the output optical power. The products feature high gain, low power consumption, and polarization maintenance, among other characteristics, and are fully processable with domestically controllable technology.
2.Features:
40G and 100G C-Band blocking shutter or modulation;

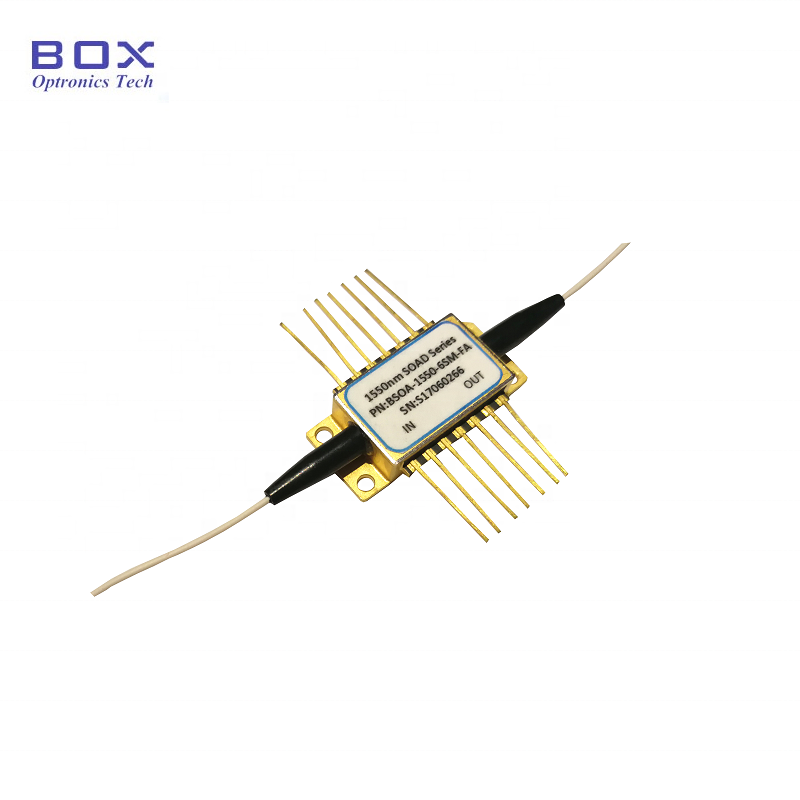

14PIN Butterfly package;
Low Noise Figure & Low polarization dependence;
SMF-28e fiber with FC/APC connector.
Reliability: Telcordia GR-468. RoHS
3.Applications:
Loss compensation for fiber optical connection and switch;
WDM fiber optical networks;
MOPA (Master Oscillator Power Amplifier) laser.
4.Electro-Optical Characteristics(25℃ laser temperature):

Parameter

Symbol

Condition

Min.

Typ.

Max.

Unit

Operating wavelength

lPEAK

25℃, PIN=-15dBm

-

1310

-

nm

ASE Centre wavelength

lASE

25℃, IF=120mA

-

1310

-

nm

-3dB Gain Bandwidth

Δl

PIN=0dBm

-

65

-

nm

Saturation Optical Power

PMAX

IF=120mA,

PIN=5dBm@1310nm

-

13

-

dBm

Small Signal Gain

SSG

IF=120mA,

PIN=-20dBm@1310nm

-

16

-

dB

Polarization dependent gain

PDG

25℃, IF=120mA

-

0.5

1.0

dB

Operating current

IF

-

-

120

250

mA

Forward voltage

VF

-

-

1.2

1.4

V

Noise Figure

NF

25℃, IF
