1550nm 20mW Laser diode with SM fiber 14PIN package builtin TEC cooler
Continuously-emitting cw laser diodes for Fields of application include measurement technology, sensor technology, medical technology, and military applications.

File Name : Format: Size:

Description Feedback
Features
High output power(10~100mW);
High-performance, multiquantum well (MQW) distributed-feedback (DFB) laser;
Industry-standard, 14-pin butterfly package;
Built-in TEC and optical isolator;
ITU wavelengths available from 1270 nm to 1650 nm;
Customer selection of wavelengths.

Applications
LAN, WAN and metro networks;
C/DWDM systems;
Fiberoptic sensors;
Laser sources;
CATV systems.

Electro-Optical Parameters

Parameter

Symbol

Condition

Min.

Typ.

Max.

Unit

Center Wavelength

λc

TL=15~35℃ CW

1548

1550

1552

nm

Peak Optical Output Power

Po

-

18

-

20

mW

Bandwidth(@-3dB)

BW

-

-

2.5

-

GHz

Threshold Current

ITH

-

-

10

35

mA

Operating current

Iop

PO= 20 mW(CW)

-

200

300

mA

TEC set temperature

Ts

-

15

-

35

℃

Monitor Dark Current

ID

-

-

-

0.1

μA

TEC Current

ITEC

TL = 25°C, TC = 70°C

-

-

1.5

A

TEC Voltage

VTEC

TL = 25°C, TC = 70°C

-

-

3.5

V


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

Relate Products
  • Adjustable optical fiber attenuator
    Adjustable optical fiber attenuator
  • Low cost 1390nm DFB CWDM coaxial laser diode
    Low cost 1390nm DFB CWDM coaxial laser d...
  • 2.5G Pigtailed GPON ONU BOSA On Board for optical fiber communication network
    2.5G Pigtailed GPON ONU BOSA On Board fo...
  • Advanced DFB chip 1530nm CWDM 20mW butterfly laser
    Advanced DFB chip 1530nm CWDM 20mW butte...
  • Low cost PM fiber coupled 1290nm 20mW butterfly laser module
    Low cost PM fiber coupled 1290nm 20mW bu...
  • 1550nm 10mW C band 14PIN butterfly laser diode
    1550nm 10mW C band 14PIN butterfly laser...
  • Standard polarization-maintaining fiber coupler 1x2(2x2)
    Standard polarization-maintaining fiber ...
  • 1064nm 1550nm Picosecond pulsed fiber laser module
    1064nm 1550nm Picosecond pulsed fiber la...
  • (6+1)x1 (18+1)x1 High Power Pump and Signal Combiners(PM or Non-PM)
    (6+1)x1 (18+1)x1 High Power Pump and Sig...
  • (1+1)x1 or (2+1)x1 High power pump and signal combiners(PM or Non-PM)
    (1+1)x1 or (2+1)x1 High power pump and s...
  • 1064nm 1550nm High power fiber coupler
    1064nm 1550nm High power fiber coupler
  • 1550nm 10mW SLED broadband light sources
    1550nm 10mW SLED broadband light sources
  • Optical fiber laser optical cable(QBH)
    Optical fiber laser optical cable(QBH)
  • 1653.7nm DFB  LD cooled coaxial pigtailed TOSA for methane detection
    1653.7nm DFB LD cooled coaxial pigtaile...
  • 1550nm Bandpass Filter with PM Fiber
    1550nm Bandpass Filter with PM Fiber
  • 980nm PM Bandpass Filter
    980nm PM Bandpass Filter
  • High power 1064nm 1.0um Band ASE Light source
    High power 1064nm 1.0um Band ASE Light s...
  • 600mW 980nm Pump laser module with FBG
    600mW 980nm Pump laser module with FBG
  • PM fiber coupled 976nm pump butterfly laser with 600mW power
    PM fiber coupled 976nm pump butterfly la...
  • C L Erbium Doped Fiber Amplifier EDFA
    C L Erbium Doped Fiber Amplifier EDFA

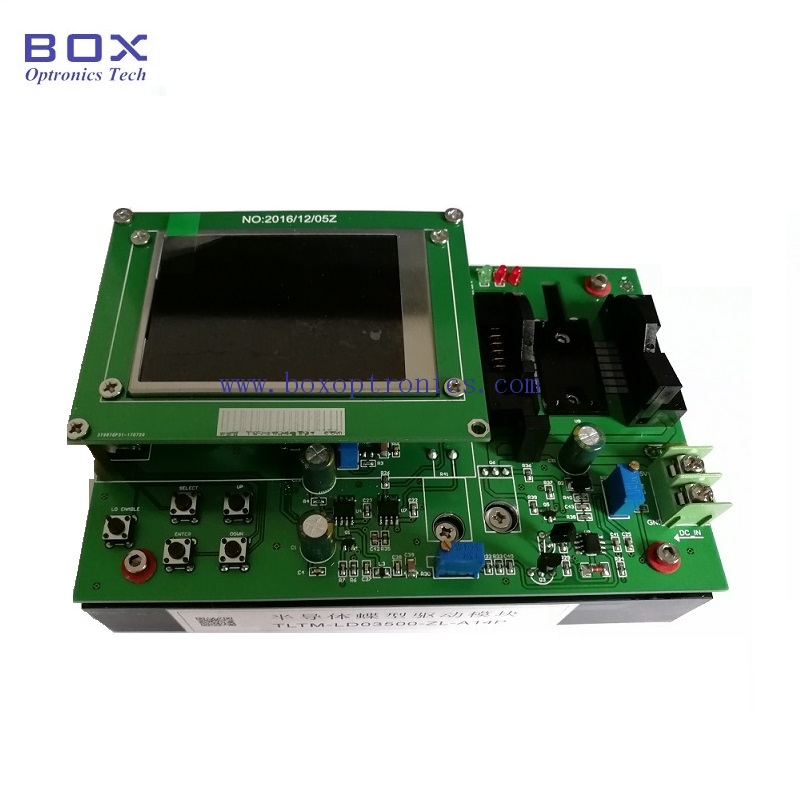

  • Semiconductor 14PIN butterfly laser driving module
