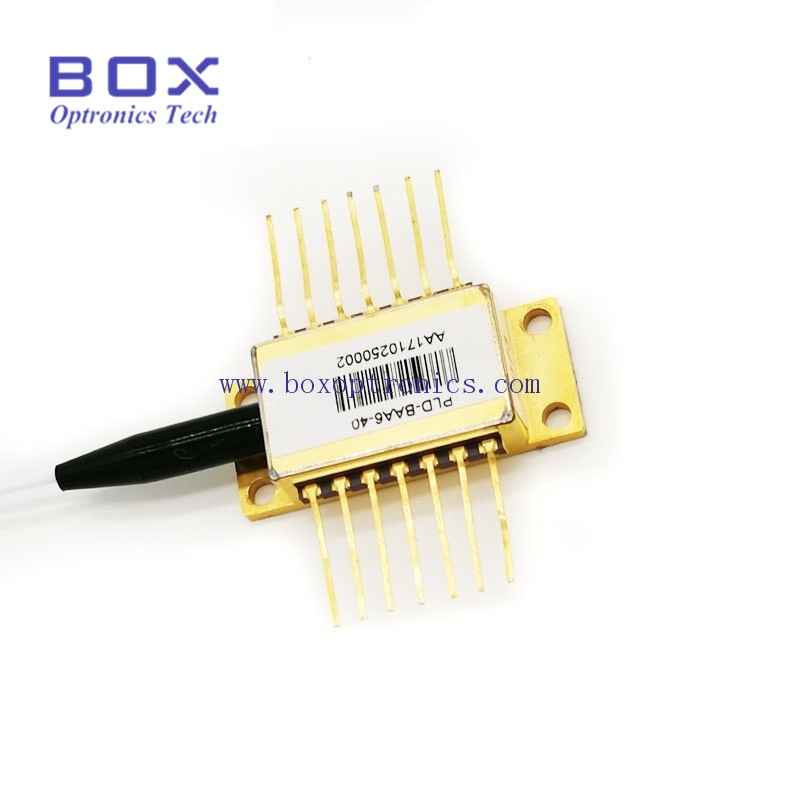

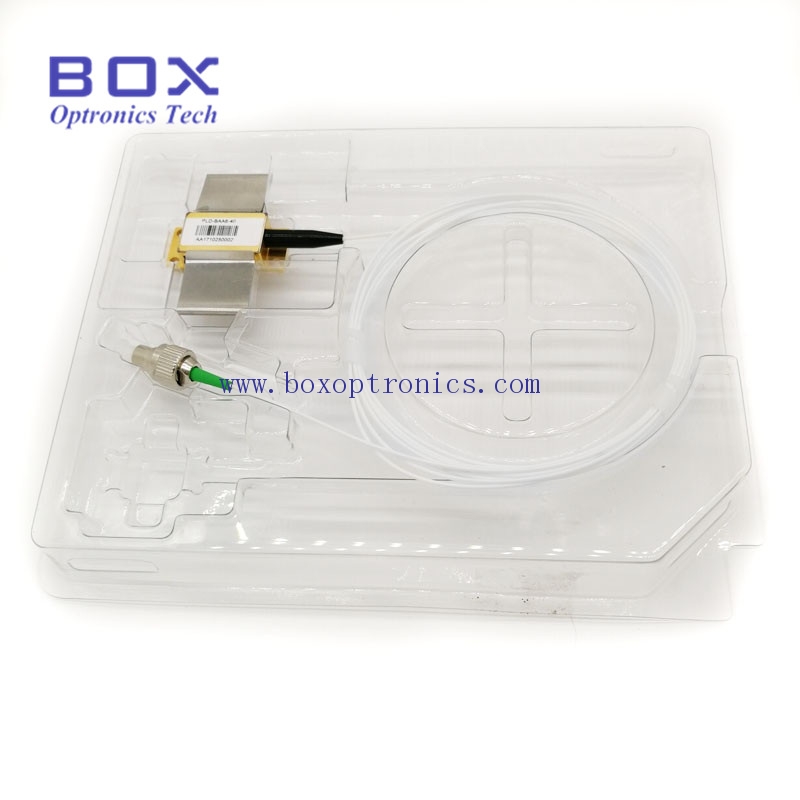

PM fiber 400mW 976nm pump laser
The pump module utilizes a planar construction with chip on subcarrier. The high power chip is hermetically sealed in a epoxy-free and flux-free 14-pin butterfly package and fitted with a thermistor, thermoelectric cooler, and monitor diode.
The pump module uses FBG stabilization to ”lock” the emission wavelength. It provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback. Wavelength selection is available for applications that require the highest performance in spectrum control with the highest available powers. This module complies described in Telcordia GR-468-CORE requirement.

File Name : Format: Size:

Description Feedback
Features
Kink-free operating power up to 400mW;
Epoxy-free, and flux-free 14-PIN butterfly package with SM Hi1060 or PM fiber;
Fiber Bragg grating stabilization wavelength selection available;
Integrated thermoelectric cooler, thermistor, and monitor diode.

Applications
Next generation dense wavelength division multiplexing(DWDM) erbium doped fiber amplifiers(EDFA);
Reduced pump-count EDFA architectures;
Very long distance cable television(CATV) trunks and very high node count distribution.

Electro-Optical Parameters

Parameters

Symbol

Min.

Typ.

Max.

Unit

Notes

LD Threshold Current

Ith



90

110

mA

CW

Output power

Pf





400

mW

If(BOL)<900mA

LD Forward Current

If





900

mA

Pf=Rated Power

LD Forward Voltage

Vf





2.5

V

Pf=Rated Power

Center Wavelength

λc

975

976

977

nm

Peak,Pf=Rated Power

Spectrum Width

△λ





2

nm

RMS@-13dB

Spectrum Stability



-0.5



0.5

nm

Pf=Rated Power,t=60s

TEC Current

Itec





2

A

Tcase=75℃

TEC Voltage

Vtec





3.5

V

Tcase=75℃

TEC Module Power Consumption

P





5

W

Tcase=75℃


Package

Original Carton Package;
As customers‘ requirement.
