Low cost 975nm 976nm 60W CW Laser diode module with 0.22NA 105um fiber
60Watt high power 976nm diode laser modules are manufactured by adopting specialized fiber-coupling techniques.

File Name : Format: Size:

Description Feedback
Features
975nm Single emitting laser;
60W Output power;
105/125μm 0.22NA Fiber;
High brightness;
RoHS Compliance.

Applications
Medical care;
Pump source;
Material processing.

Electro-Optical Parameters

Parameter

Symbol

Min

Typical

Max

Unit

Operating output power

Pout

-

60.0

 -

W

Range of available wavelength

λ

965

975

985

nm

Spectral width @ FWHM

Δλ



4.0

7.0

nm

Threshold current

Ith

-

0.5

0.9

A

Operating current at Pout

Iop



11.5

12.5

A

Forward voltage at Pout

Vf



9.8

12.0

V

Power conversion efficiency

-



50%



-

Slope efficiency

η



5.2



W/A

Wavelength temperature coefficient

Δλ/ΔT

 -

0.3

-

nm/℃

Fiber core/cladding diameter

DCOR



105/125



µm/µm

Fiber numerical aperture

NA



0.22



-


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

Relate Products
  • High coupling efficiencies 0.22NA 106.5um 975nm 90W fiber coupled module
    High coupling efficiencies 0.22NA 106.5u...
  • High power 915nm 280W 0.22NA 200um fiber coupled diode laser
    High power 915nm 280W 0.22NA 200um fiber...
  • Manufacturer high power 880nm 150W near infrared diode laser
    Manufacturer high power 880nm 150W near ...
  • High-brightnes 808nm 8W 200um multi-mode fiber uncooled diode laser
    High-brightnes 808nm 8W 200um multi-mode...
  • Mini Faraday rotator mirror
    Mini Faraday rotator mirror
  • 2mW 1470nm DFB CWDM receptacle laser with isolator
    2mW 1470nm DFB CWDM receptacle laser wit...
  • Highly efficient coaxial pigtailed 1310nm FP laser diode
    Highly efficient coaxial pigtailed 1310n...
  • High quality 1310nm TO56 Laser diode integrated aspheric focusing lens
    High quality 1310nm TO56 Laser diode int...
  • Low cost PM fiber coupled 1290nm 20mW butterfly laser module
    Low cost PM fiber coupled 1290nm 20mW bu...
  • 1x3 3x3 Polarization maintaing fiber coupler
    1x3 3x3 Polarization maintaing fiber cou...
  • Special fiber coupler
    Special fiber coupler
  • Low insertion loss visible light fused combiner RG RB GB
    Low insertion loss visible light fused c...
  • (1+1)x1 or (2+1)x1 High power pump and signal combiners(PM or Non-PM)
    (1+1)x1 or (2+1)x1 High power pump and s...
  • PM fiber coupled 976nm pump butterfly laser with 600mW power
    PM fiber coupled 976nm pump butterfly la...
  • 1550nm Temperature FBG Sensor
    1550nm Temperature FBG Sensor
  • 1480nm Pump laser source
    1480nm Pump laser source
  • 1560.61nm PM fiber narrow linewidth laser 50KHz
    1560.61nm PM fiber narrow linewidth lase...
  • 1310nm, 1550nm Slow axis working PM circulator
    1310nm, 1550nm Slow axis working PM circ...
  • 1064nm-(6+1)x1 fiber pump combiner
    1064nm-(6+1)x1 fiber pump combiner
  • High coupling efficiencies 0.22NA 106.5um 975nm 90W fiber coupled module
    High coupling efficiencies 0.22NA 106.5u...
  • High power 915nm 280W 0.22NA 200um fiber coupled diode laser
    High power 915nm 280W 0.22NA 200um fiber...
  • Manufacturer high power 880nm 150W near infrared diode laser
    Manufacturer high power 880nm 150W near ...
  • High-brightnes 808nm 8W 200um multi-mode fiber uncooled diode laser
    High-brightnes 808nm 8W 200um multi-mode...
  • Mini Faraday rotator mirror
    Mini Faraday rotator mirror
  • 2mW 1470nm DFB CWDM receptacle laser with isolator
    2mW 1470nm DFB CWDM receptacle laser wit...
  • Highly efficient coaxial pigtailed 1310nm FP laser diode
    Highly efficient coaxial pigtailed 1310n...
  • High quality 1310nm TO56 Laser diode integrated aspheric focusing lens
    High quality 1310nm TO56 Laser diode int...
  • Low cost PM fiber coupled 1290nm 20mW butterfly laser module
    Low cost PM fiber coupled 1290nm 20mW bu...
  • 1x3 3x3 Polarization maintaing fiber coupler
    1x3 3x3 Polarization maintaing fiber cou...
  • Special fiber coupler
    Special fiber coupler

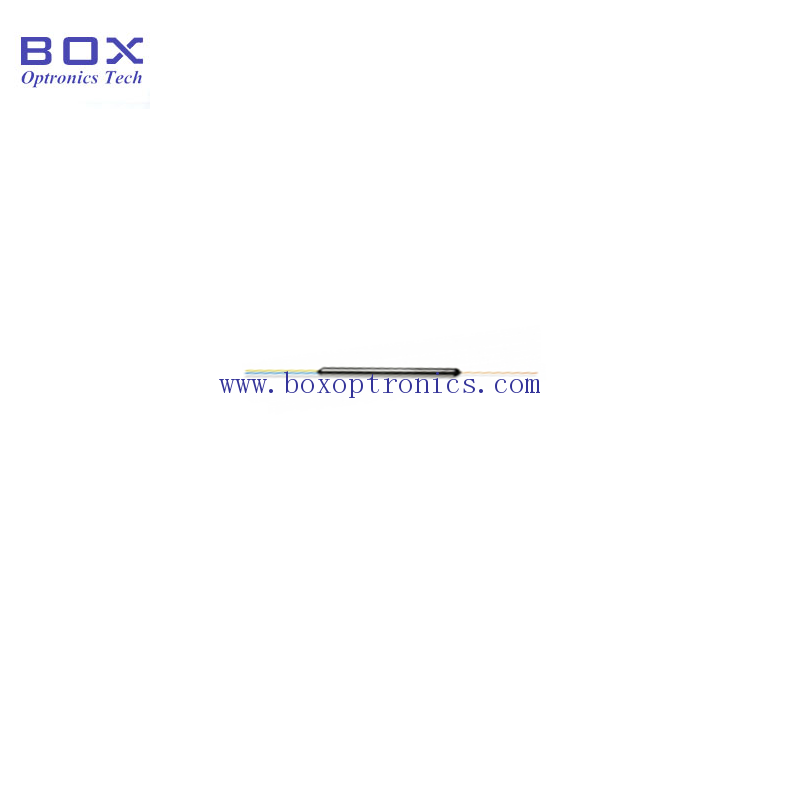

  • Low insertion loss visible light fused combiner RG RB GB
    Low insertion loss visible light fused c...

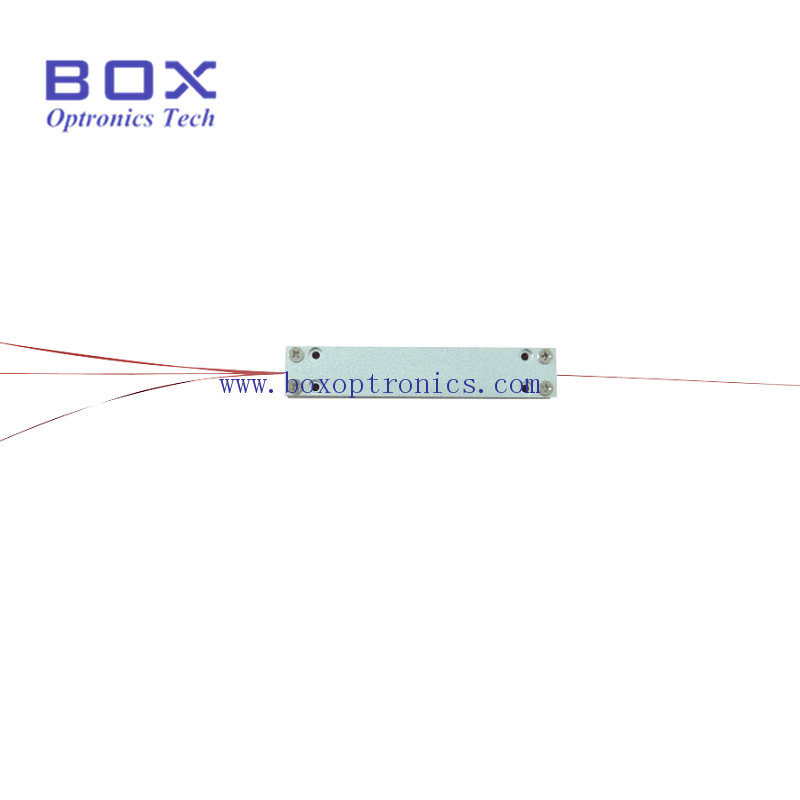

  • (1+1)x1 or (2+1)x1 High power pump and signal combiners(PM or Non-PM)
    (1+1)x1 or (2+1)x1 High power pump and s...

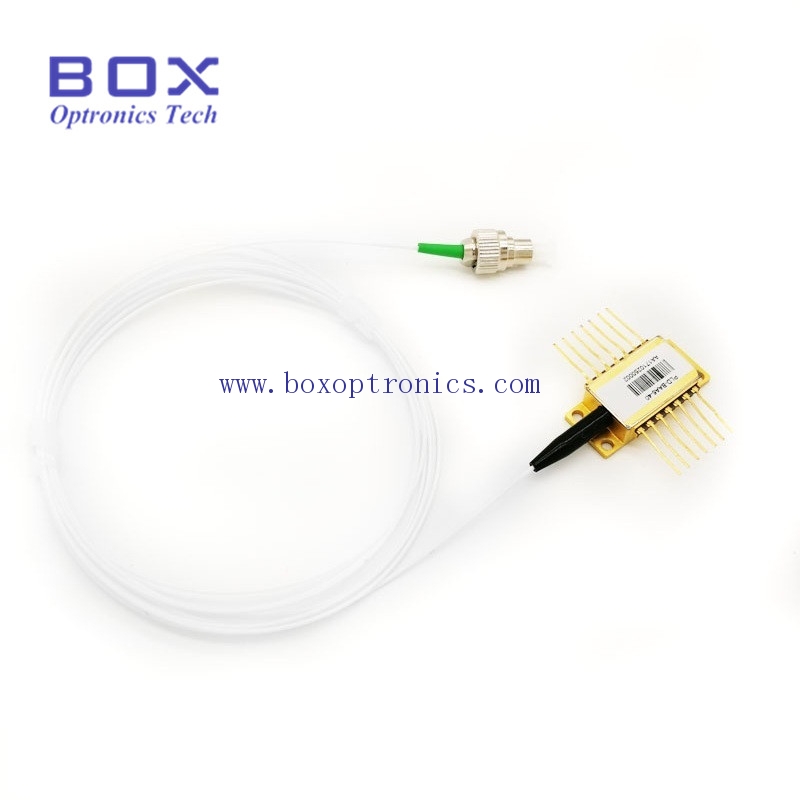

  • PM fiber coupled 976nm pump butterfly laser with 600mW power
