Low cost 10G EPON ONU BOSA with pigtail
10Gbps Bi-Directional Optical Sub-Assemblies (10G BOSAs) are the RoHS compliant, which are designed for bi-directional 10Gbps optical fiber network applications.

File Name : Format: Size:

Description Feedback
Features
High-stability 1.25G 1270nm DFB laser;
Built-in InGaAs/InP monitor photodiode;
Low threshold;
High reliability;
High sensitive 10.3125G APD-TIA.

Applications
FTTx application;
EPON Optical communication system.

Electro-Optical Parameters

Transmitter

Symbol

Test Condition

Min.

Typ.

Max.

Unit

Optical Wavelength

λ

CW, Iop=Ith+20mA

1260

1270

1280

nm

Optical Output Power

Pf

CW, Iop=Ith+30mA

1.8

-

4.2

mW

Slope Efficiency

SE

CW, Ith~Ith+30mA, TC=25℃

0.9

-

0.21

mW/mA

PD Dark Current

Id

CW,Vrpd=5V

-

-

0.1

uA

Tracking Error

TE

CW, Pf=Ith+20, 0℃ and +70℃

-1.5

-

1.5

dB

Receiver

Operating Wavelength

λ

Tc=0~70℃

1567

1577

1587

nm

TIA Power Supply

Vcc

Tc=0~70℃

3.0

3.3

3.6

V

TIA Supply Current

Icc

Vcc=3.3V

-

-

47

mA

APD Breakdown Voltage

Vbr

Id=10uA, Tc=25℃ TIA on

20

-

40

V


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

Relate Products
  • 850nm 0.5mm Si PIN photodiode
    850nm 0.5mm Si PIN photodiode
  • 2.5G Pigtailed GPON ONU BOSA On Board for optical fiber communication network
    2.5G Pigtailed GPON ONU BOSA On Board fo...
  • Quotation for 1590nm 20mW TEC temperature stabilized laser
    Quotation for 1590nm 20mW TEC temperatur...
  • Single mode CWDM 1450nm 20mW laser module
    Single mode CWDM 1450nm 20mW laser modul...
  • 1330nm 10mW Fiber coupled LD with 14pin butterfly package
    1330nm 10mW Fiber coupled LD with 14pin ...
  • 1x2 2x2 PI PMC Polarization-insensitive fused PM fiber coupler
    1x2 2x2 PI PMC Polarization-insensitive ...
  • 1030nm Polarization maintaining circulator Both axis working
    1030nm Polarization maintaining circulat...
  • 1XN Polarization maintaining optical switch
    1XN Polarization maintaining optical swi...
  • High power circulator
    High power circulator
  • DTS Pulse laser module
    DTS Pulse laser module
  • Ultra narrow linewidth single-frequency laser module
    Ultra narrow linewidth single-frequency ...
  • High power 10W fiber optic laser module
    High power 10W fiber optic laser module
  • 1064nm 1550nm Picosecond pulsed fiber laser module
    1064nm 1550nm Picosecond pulsed fiber la...
  • High stability 1550nm nanosecond fiber laser module
    High stability 1550nm nanosecond fiber l...
  • Customizable 1560nm femtosecond fiber laser module
    Customizable 1560nm femtosecond fiber la...
  • 1270nm to 1610nm CWDM TO56 Aspherical Lens
    1270nm to 1610nm CWDM TO56 Aspherical Le...
  • Laser power combining module
    Laser power combining module
  • 1550nm 10mW SLED broadband light sources
    1550nm 10mW SLED broadband light sources
  • Optical fiber laser optical cable(QBH)
    Optical fiber laser optical cable(QBH)
  • LAN WDM Butterfly laser diode with TEC
    LAN WDM Butterfly laser diode with TEC
  • 1W 650nm TO5 9mm package diode laser
    1W 650nm TO5 9mm package diode laser
  • SM PM fiber coupled 1550nm SOA optical amplifier for optic connection and switch
    SM PM fiber coupled 1550nm SOA optical a...

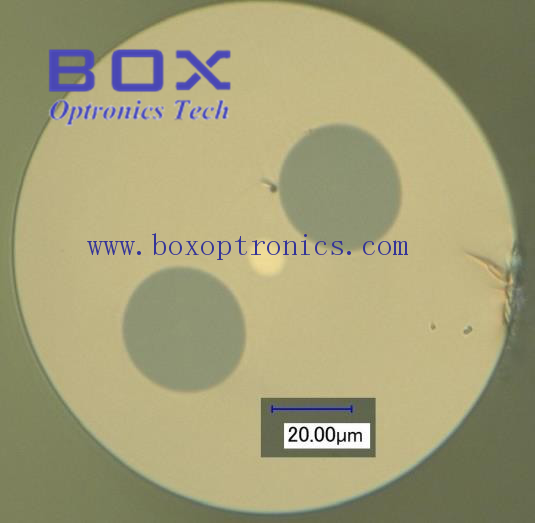

  • PM 10/130 Thulium-Doped Double-Clad Fiber
