1x2 Single mode fiber WDM
The WDM coupler is based on fused fiber and fused biconical taper (FBT) technology. It obtains light from two inputs with different wavelengths and feeds it into the same output fiber. When used in the reverse direction, the fused WDM coupler is capable of separating the two wavelengths.

File Name : Format: Size:

Description Feedback
Features
Low Insertion Loss;
High Return Loss;
Low Correlation Polarization Loss;
High Stability&Reliability;
High isolation.

Applications
Optical fiber communication network;
Fiber optic amplifier;
Fiber optic laser;
Fiber optic instrumentation.

Electro-Optical Parameters

Parameters

Unit

Value

Type

-

WDM

Center Wavelength

nm

1310/1550

980/1550

1480/1550

Wavelength Range

nm

±15

±10/20

±5

Grade

dB

P

A

P

A

P

A

P

A

P

A

Isolation

dB

≥ 17

≥ 16

≥ 32

≥ 30

≥ 20

≥ 18

≥ 20

≥ 18

≥ 15

≥ 14

Correlation polarization Loss

dB

≤ 0.05

≤ 0.10

≤ 0.10

≤ 0.15

≤ 0.05

≤ 0.10

≤ 0.05

≤ 0.10

≤ 0.10

≤ 0.10

Fiber Type

-

Routine

High Isolation

Routine

Blend Fiber

Routine

-

SMF-28e

HI1060flex

HI1060flex

SMF-28e

SMF-28e


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

Relate Products
  • 1625nm DFB Pigtailed Laser diode for OTDR Transmission
    1625nm DFB Pigtailed Laser diode for OTD...
  • FC/UPC Bare fiber adapter
    FC/UPC Bare fiber adapter
  • Coaxial 1430nm DFB CWDM laser with monitoring PIN PD for light source
    Coaxial 1430nm DFB CWDM laser with monit...
  • Quotation 1530nm uncooled multi-quantum-well DFB Distributed Feedback TO56 laser diode
    Quotation 1530nm uncooled multi-quantum-...

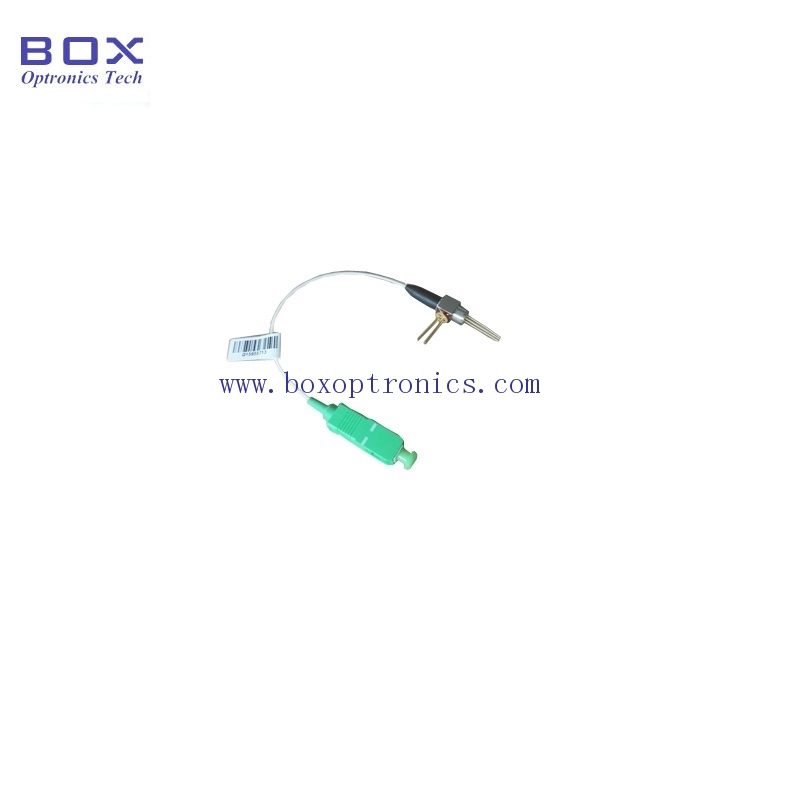

  • 2.5G Pigtailed GPON ONU BOSA On Board for optical fiber communication network
    2.5G Pigtailed GPON ONU BOSA On Board fo...

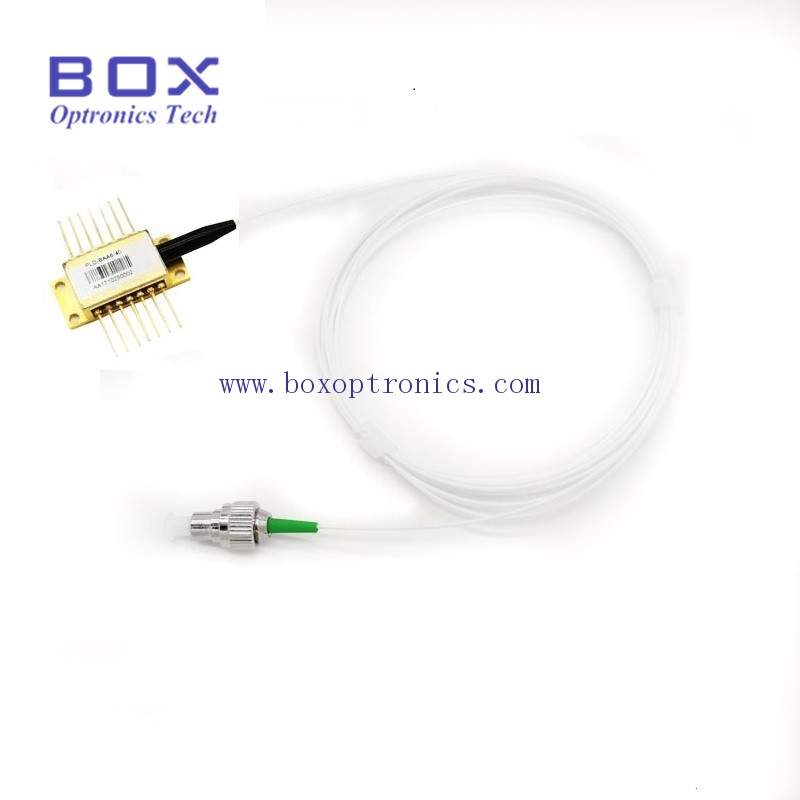

  • 14PIN Standard 1430nm 20mW butterfly laser diode with driver module
    14PIN Standard 1430nm 20mW butterfly las...
  • 1550nm 10mW C band 14PIN butterfly laser diode
    1550nm 10mW C band 14PIN butterfly laser...
  • 1330nm 10mW Fiber coupled LD with 14pin butterfly package
    1330nm 10mW Fiber coupled LD with 14pin ...
  • Standard polarization-maintaining fiber coupler 1x2(2x2)
    Standard polarization-maintaining fiber ...
  • 1295.56nm Single-mode fiber SMF coupled 10mW laser diode
    1295.56nm Single-mode fiber SMF coupled ...
  • 1X2 Polarization maintaining circulator Fast axis blocked
    1X2 Polarization maintaining circulator ...
  • 1x2 Single mode fiber coupler
    1x2 Single mode fiber coupler
  • 1580nm DFB 10mW 14PIN Butterfly laser diode for gas sensor
    1580nm DFB 10mW 14PIN Butterfly laser di...
  • 1567nm SM DFB 10mW butterfly laser diode
    1567nm SM DFB 10mW butterfly laser diode
  • Made in China 1064nm PM fiber band pass filter
    Made in China 1064nm PM fiber band pass ...
  • Optical PM fiber in-line depolarizer
    Optical PM fiber in-line depolarizer

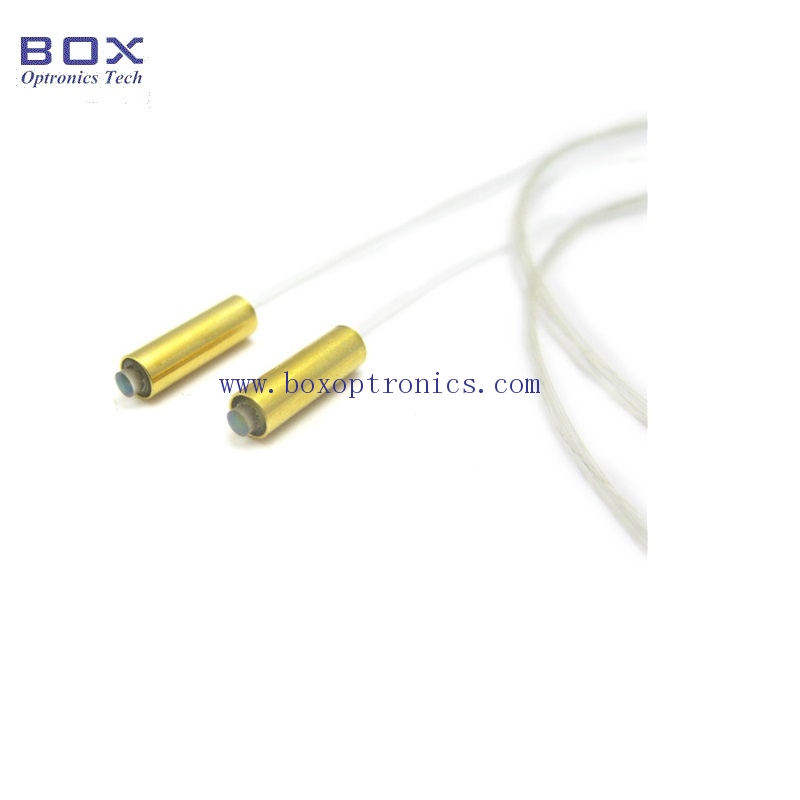

  • Customization optical collimators for optical testing
