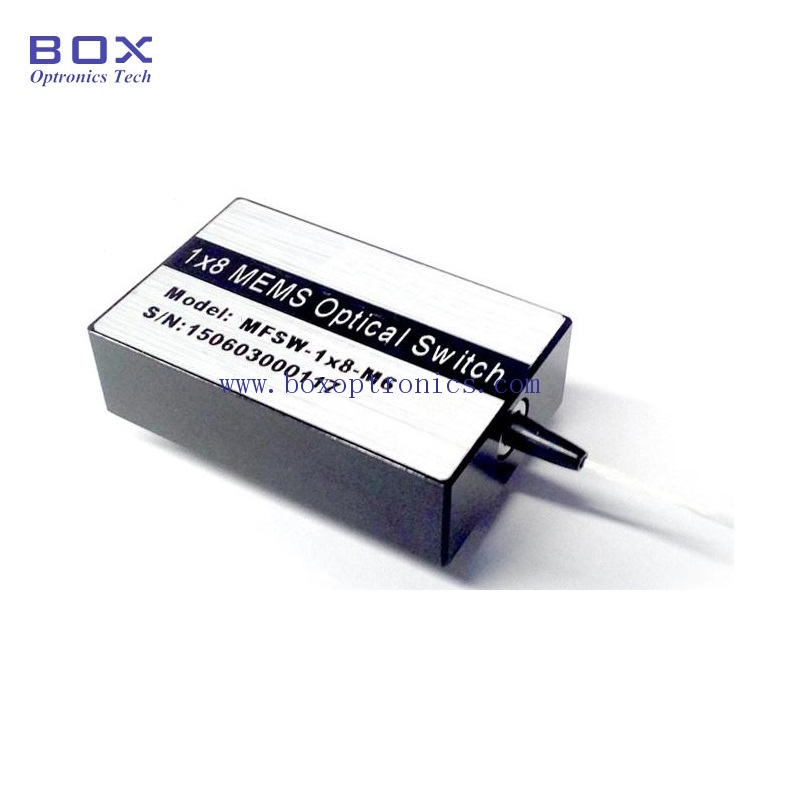

MEMS Optical Switch

The MEMS (Micro Electro Mechanical System) Optical Switch are designed a small footprint package with providing low insertion loss, flat wavelength dependence loss (WDL), low polarization dependence loss (PDL) and performing less than 1ms/10ms switching speed.

The Optical Switch has our original robust structure MEMS chip which is patented design. It never happen pull in effect and sticking the mirror during operation. The MEMS chip is hermetic sealed in the metal package by our perfect welding technology to provide high reliability.

File Name : Format: Size:

Description Feedback

Features

Base on MEMS technology;

Small package;

High Stability, High Reliability;

Epoxy-free on Optical Path;

Non-latching.

Applications

DWDM networks;

Channel Monitor;

R&D in Laboratory;

Configurable OADM.

Electro-Optical Parameters

Parameters	Unit	FSW-MEMS-1×N(≤16)
Wavelength Range	nm	SM	MM
Wavelength Range	nm	1260~1650	850±20 or 1310±20 or 1550±20
Test Wavelength	nm	1310/1550	850/1310/1550
Insertion Loss 1,2,3	dB	0.6(TYP) 0.8(MAX) N≤8 1.0(TYP) 1.6(MAX) N≤16	0.8(TYP)1.0(MAX) N≤8 1.0(TYP) 1.5(MAX) N≤12
WDL 2	dB	≤0.3	≤0.3
PDL 1,2	dB	≤0.15	≤0.15
Return Loss 1,2	dB	≥40	≥25
Switch Time	ms	≤20
Transmission Power	mW	≤500
