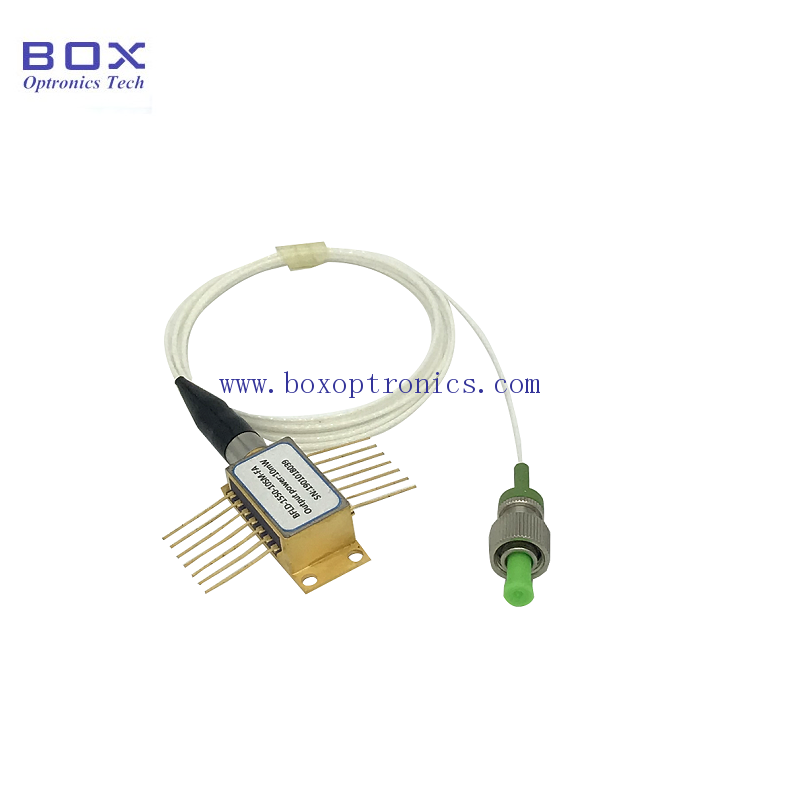

High power 20mW 1510nm wavelength stabilized 14PIN laser diode
Box optronics can custom wavelength high power DFB lasers, FBG stabilized laser diode modules.

File Name : Format: Size:

Description Feedback
Features
Integral TEC;
PM/SMF Coupled with FC/APC;
Built-in Optical Isolator;
1510nm DFB chip.

Applications
LIDAR;
Gas sensing;
Range finding;
Absorption spectroscopy;
Laser sources;
CATV systems.

Electro-Optical Parameters

Parameter

Symbol

Condition

Min.

Typ.

Max.

Unit

Center Wavelength

λc

TL=15~35℃ CW

1508

1510

1512

nm

Peak Optical Output Power

Po

-

18

-

20

mW

Bandwidth(@-3dB)

BW

-

-

2.5

-

GHz

Threshold Current

ITH

-

-

10

35

mA

Operating current

Iop

PO= 20 mW(CW)

-

200

300

mA

TEC set temperature

Ts

-

15

-

35

℃

Monitor Dark Current

ID

-

-

-

0.1

μA

TEC Current

ITEC

TL = 25°C, TC = 70°C

-

-

1.5

A

TEC Voltage

VTEC

TL = 25°C, TC = 70°C

-

-

3.5

V


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
