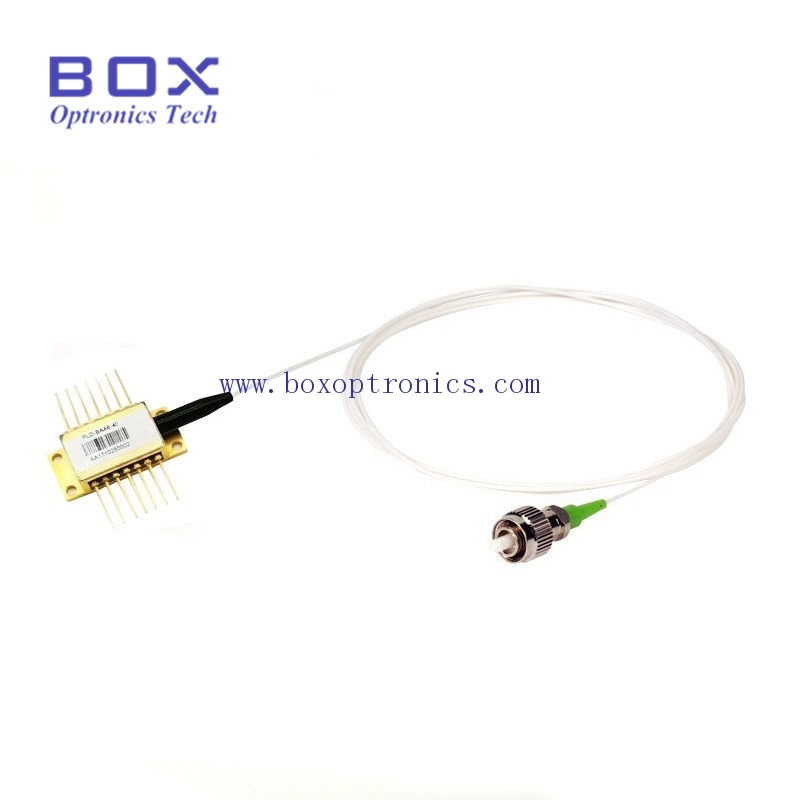

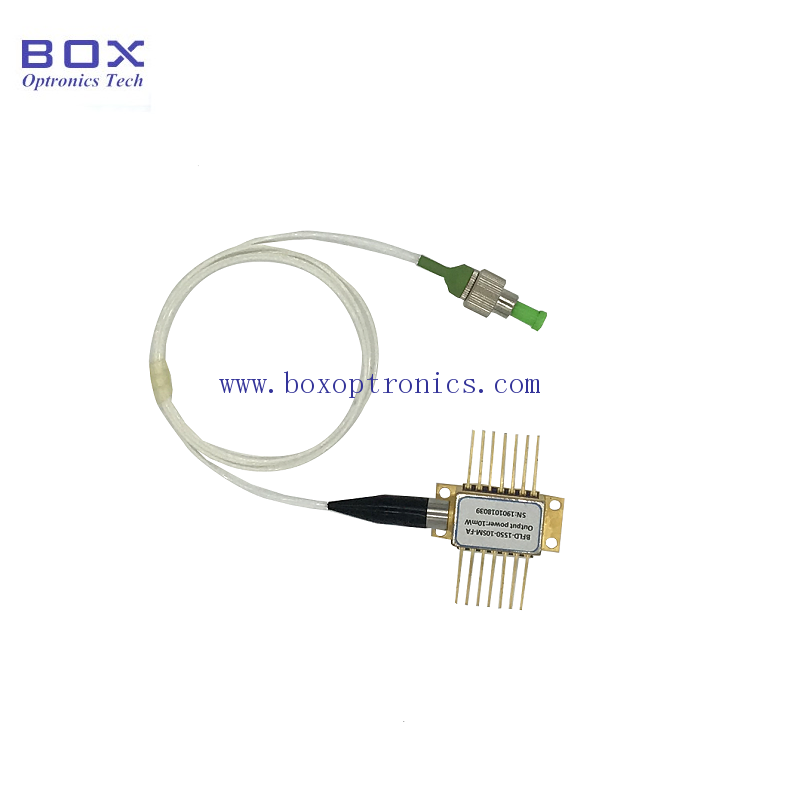

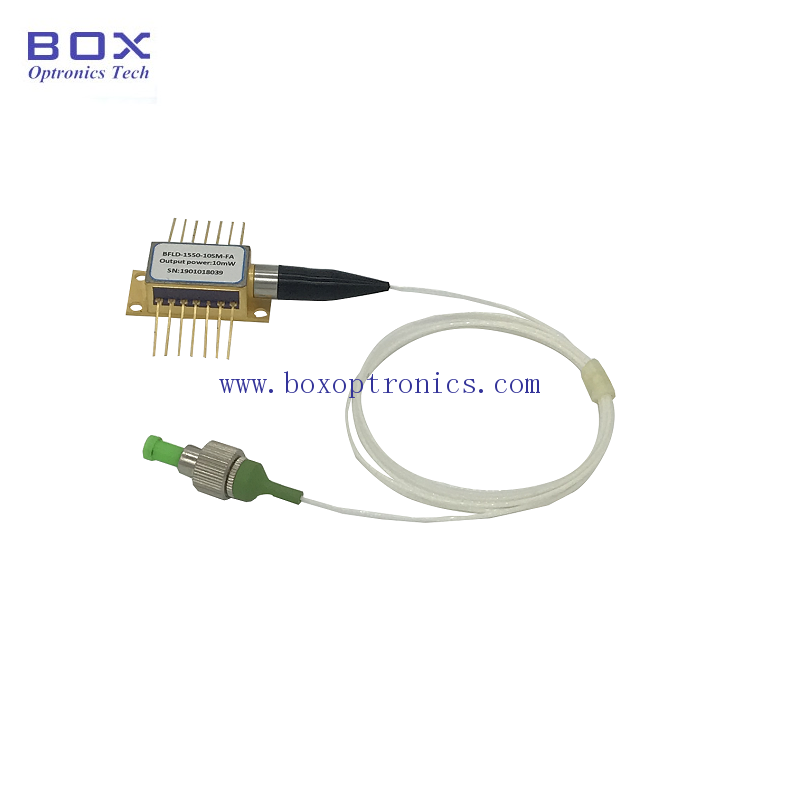

High precision 1430nm 10mW butterfly laser
The 1430nm 14pin butterfly laser diode is with internal thermistors and thermo electric Coolers (TEC).

File Name : Format: Size:

Description Feedback
Features
Excellent wavelength control and stability;
Industry Standard 14 pin Butterfly package;
Excellant reliability;
Built-in TEC and optical isolator;
1430nm DFB chip.

Applications
Test Equipment;
Optical sensors;
Laser sources;
CATV systems.

Electro-Optical Parameters

Parameter

Symbol

Condition

Min.

Typ.

Max.

Unit

Center Wavelength

λc

TL=15~35ºC CW

1428

1430

1432

nm

Output Power

PO

-

10

-

-

mW

Spectral linewidth

LW

Full width, half maximum (FWHM)

-

2

-

MHz

Bandwidth(@-3dB)

BW

-

-

2.5

-

GHz

Side-mode Suppression Ratio

SMSR

CW

35

40

-

dB

Optical Isolation

-

-10 < TC < +70 ºC

30

-

-

dB

Relative Intensity Noise

RIN

CW, output power 5mW

-

-145

-

dB

Wavelength Temperature coefficient

Δλ/ΔT

TEC temperature at 15ºC to 35ºC

-

0.09

-

nm/℃


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

Relate Products
  • High optical isolator fiber coupled 1570nm DFB CWDM laser diode
    High optical isolator fiber coupled 1570...
  • Coaxial package 1390nm 5.6mm TO-CAN LD
    Coaxial package 1390nm 5.6mm TO-CAN LD
  • CWDM 1370nm 20mW butterfly-packaged laser diode
    CWDM 1370nm 20mW butterfly-packaged lase...
  • PM Fiber coupled butterfly type for 1390nm 10mW laser diode
    PM Fiber coupled butterfly type for 1390...
  • 1270nm 10mW DFB SM Laser diode built-in isolator
    1270nm 10mW DFB SM Laser diode built-in ...
  • Standard polarization-maintaining fiber coupler 1x2(2x2)
    Standard polarization-maintaining fiber ...
  • 1x2 2x2 PI PMC Polarization-insensitive fused PM fiber coupler
    1x2 2x2 PI PMC Polarization-insensitive ...
  • Polarization maintaining fused RG combiner module RGB
    Polarization maintaining fused RG combin...

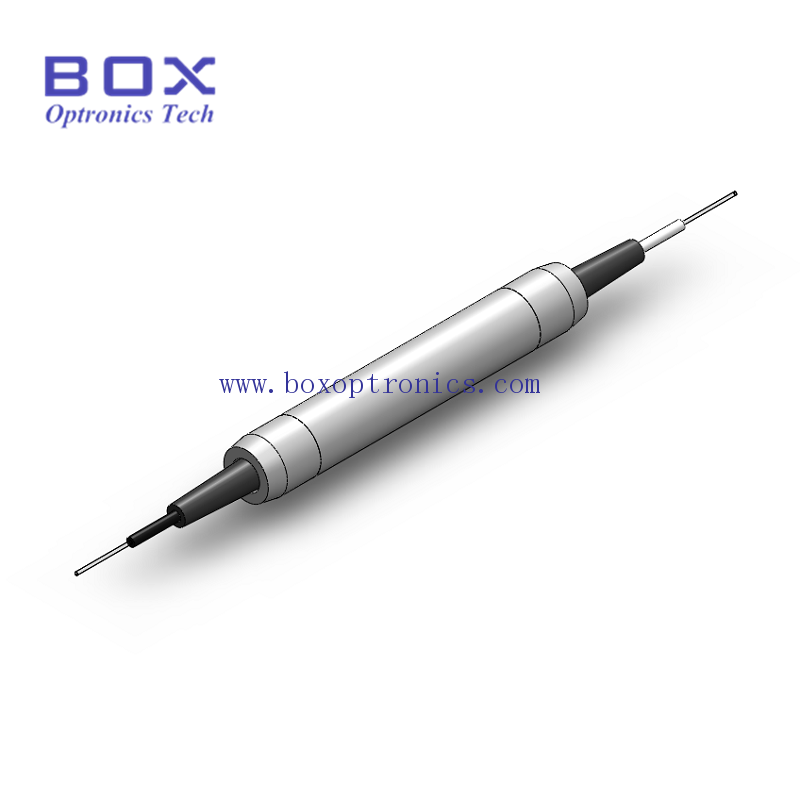

  • PM Polarization maintaining isolator
    PM Polarization maintaining isolator
  • Avalanche photodiode APD with butterfly package for Lidar
    Avalanche photodiode APD with butterfly ...
  • High quality InGaAs butterfly photodiode
    High quality InGaAs butterfly photodiode

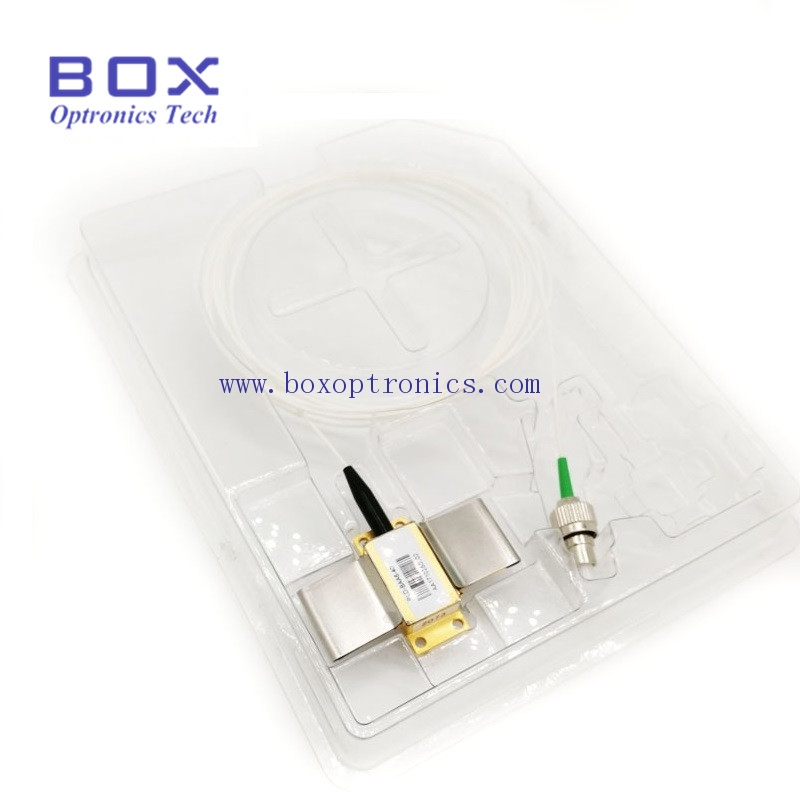

  • 100mW 980nm Pump butterfly laser module
    100mW 980nm Pump butterfly laser module
  • 1xN Single mode fiber WDM
    1xN Single mode fiber WDM
  • 1580nm DFB 10mW 14PIN Butterfly laser diode for gas sensor
    1580nm DFB 10mW 14PIN Butterfly laser di...
  • 1567nm SM DFB 10mW butterfly laser diode
    1567nm SM DFB 10mW butterfly laser diode
  • Made in China 1064nm PM fiber band pass filter
    Made in China 1064nm PM fiber band pass ...
  • Low cost 90 degree rotation faraday mirror
    Low cost 90 degree rotation faraday mirr...
  • 1510nm Laser diode TO56 package LD for 2.5Gbps optical telecommunication
    1510nm Laser diode TO56 package LD for 2...

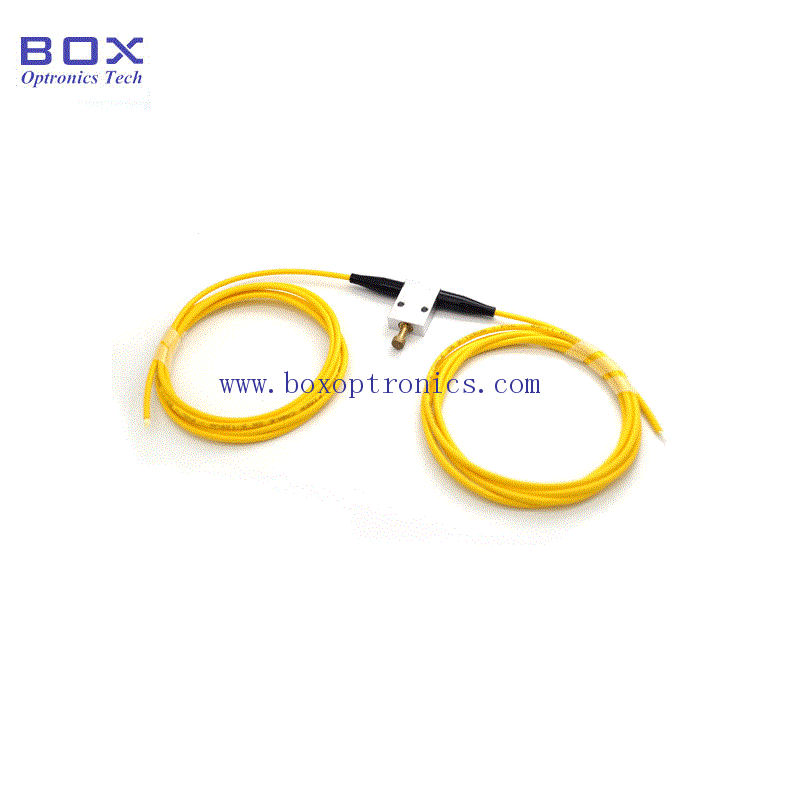

  • PM Manual variable optical attenuator
