976nm 130W diode laser 0.22NA 106.5um pigtailed fiber optic cable with SMA905 connector

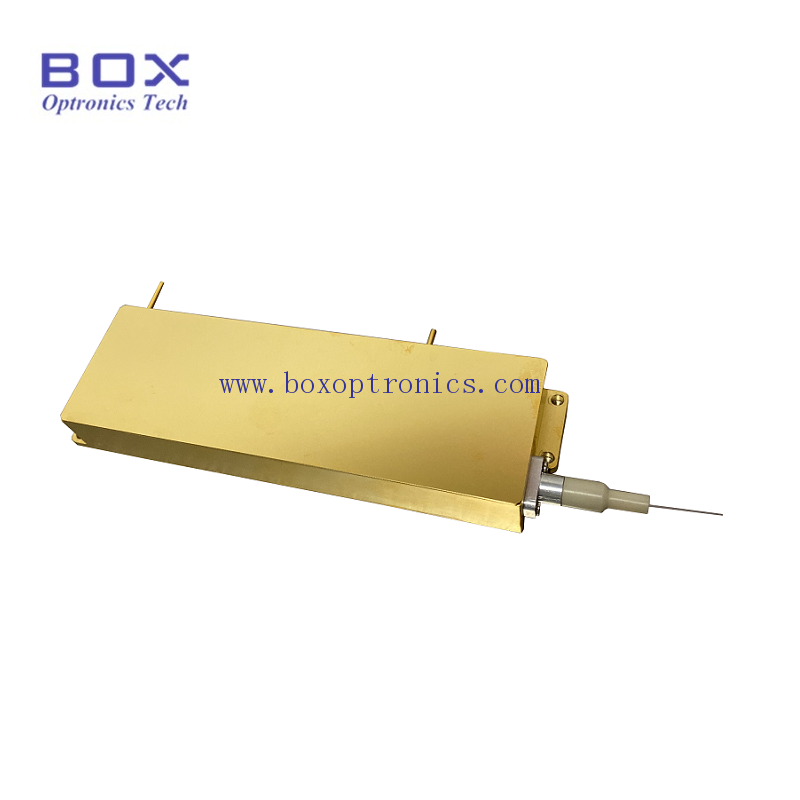

This fiber-coupled 976nm diode laser with 130W of continues wave (CW) output from a 105-micron core diameter pigtailed fiber optic cable terminated with a SMA905 connector.

File Name : Format: Size:

Description Feedback

Features

976nm Single emitting laser;

130W Output power;

106.5μm 0.22NA Fiber;

High brightness;

RoHS Compliance.

Applications

Medical care;

Pump source;

Material processing.

Electro-Optical Parameters

Parameter	Symbol	Min	Typical	Max	Unit
Operating output power	P_out	120.0	130.0	-	W
Range of available wavelength	λ	971	976	981	nm
Spectral width @ FWHM	Δλ		4.5	-	nm
Threshold current	Ith	-	0.5	-	A
Operating current at Pout	I_op		12.0	13.0	A
Forward voltage at Pout	V_f		25.5	-	V
Power conversion efficiency	-		45%		-
Slope efficiency	η		12.0		W/A
Wavelength temperature coefficient	Δλ/ΔT	-	0.3	-	nm/℃
Fiber core/cladding diameter	D_COR		106.5		µm
Fiber numerical aperture	NA		0.22		-

Package

Original Carton Package;

As customers‘ requirement.

Shipping

5-10 Working days after receive the payment;

Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);

Shipping fee depends on the weight and size.

Payment

For large orders: T/T, Credit card;

For small orders: Paypal are accepted.

Warranty

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
