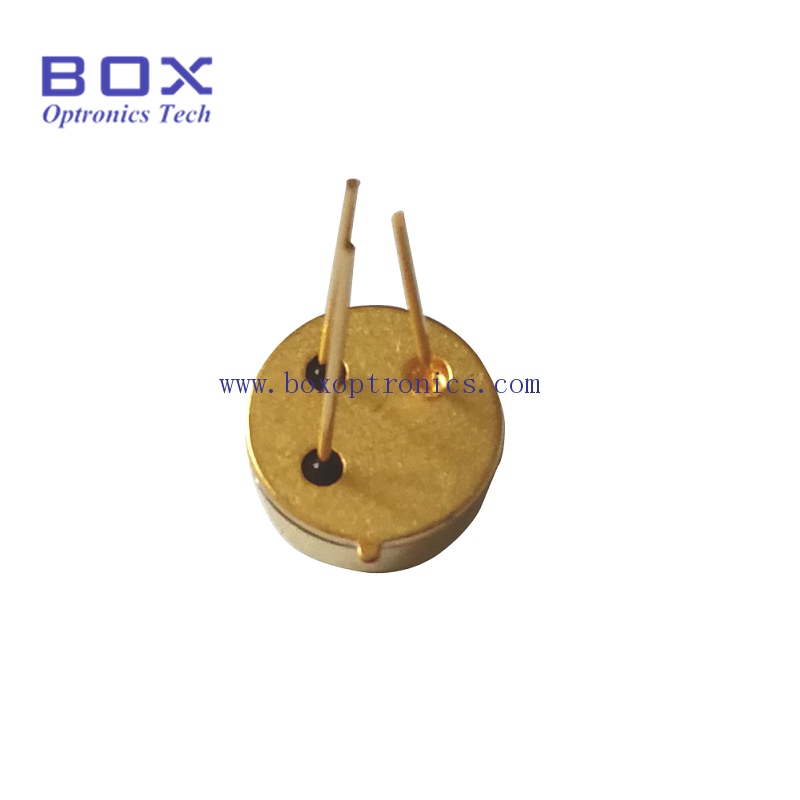

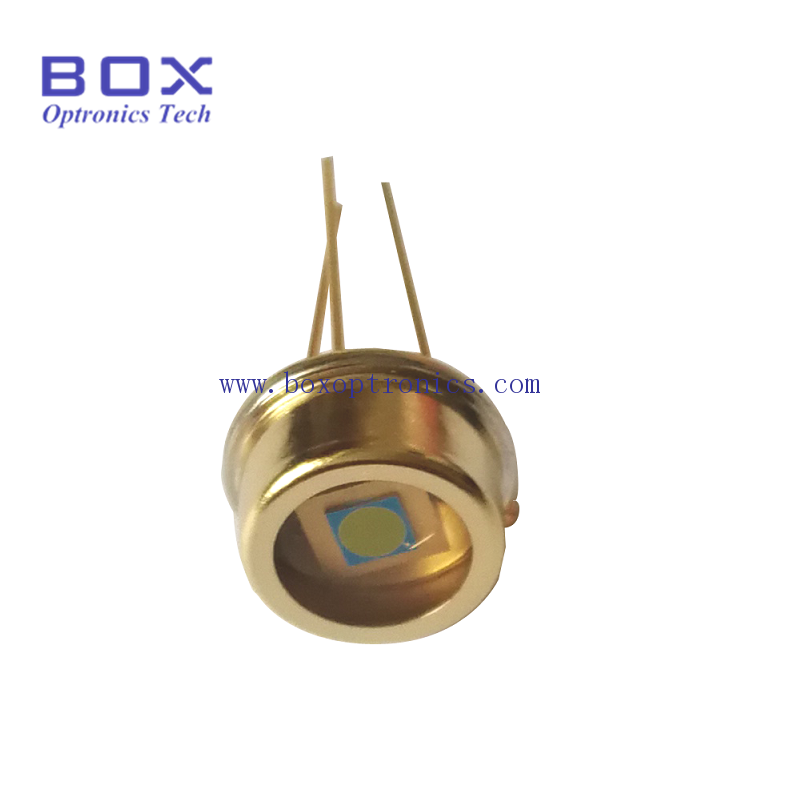

5000um InGaAs Photodiode TO-CAN
Large Area InGaAs photodiodes for instrumentation and sensing applications with excellent responsivity in the wavelength region 800nm-1700nm. Photosensitive are come from 500um to 5000um.
High speed InGaAs photodiodes for high speed analog and digital communication systems, LANs, FDDI, instrumentation, and sensing applications. Low dark current, low capacitance photodiode and photosensitive  available from 50um to 300um.

File Name : Format: Size:

Description Feedback
Features
High reliability;
Large active diameters;
Low noise;
Top illumination planar PD.

Applications
Optical power meter;
Response spectrum testing;
Space light detect equipment.

Electro-Optical Parameters

Parameter

Symbol

Test Conditions

Min.

Typ.

Max.

Unit

Responsibility

Re

λ =1310nm VR= 5V φe=10µw

0.75

-

-

A/W

λ =1550nmVR= 5V φe=10µw

0.8

-

-

A/W

Dark Current

Id

VR= 5V

-

-

200

nA

Wavelength

λ

-

900

-

1700

nm

Active Area

φ

-

-

5

-

mm

Reverse Breakdown Voltage

VBR

IR= 10µA

20

-

-

GHz

Capacitance

C

VR =5V

-

-

1.5

nF

Shunt Impedance

Rsh

VR= 10mV

1





MΩ


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

Relate Products

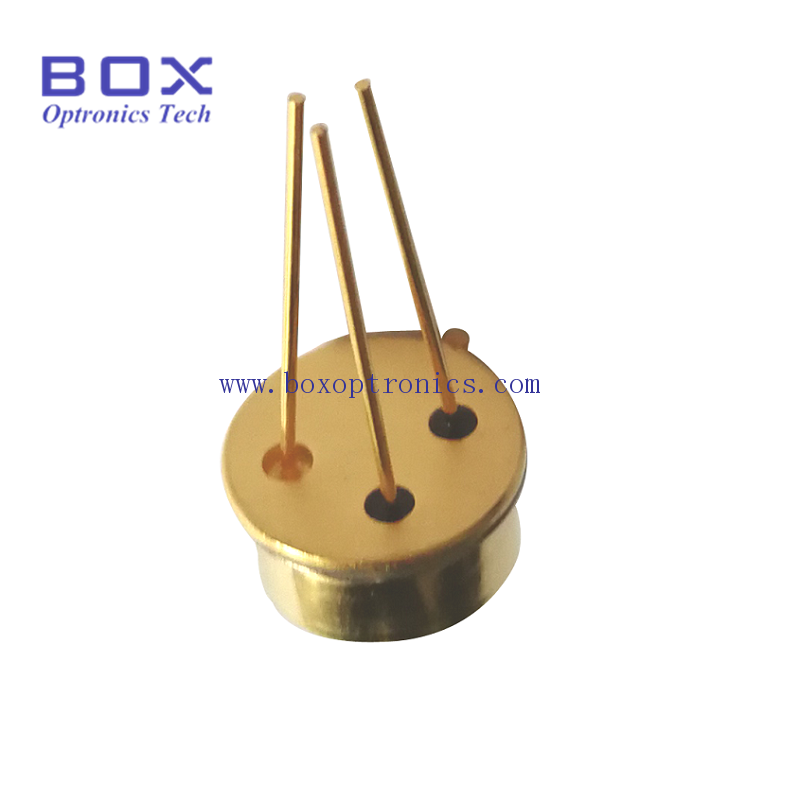

  • 1mm PD TO46 InGaAs Photodiode
    1mm PD TO46 InGaAs Photodiode

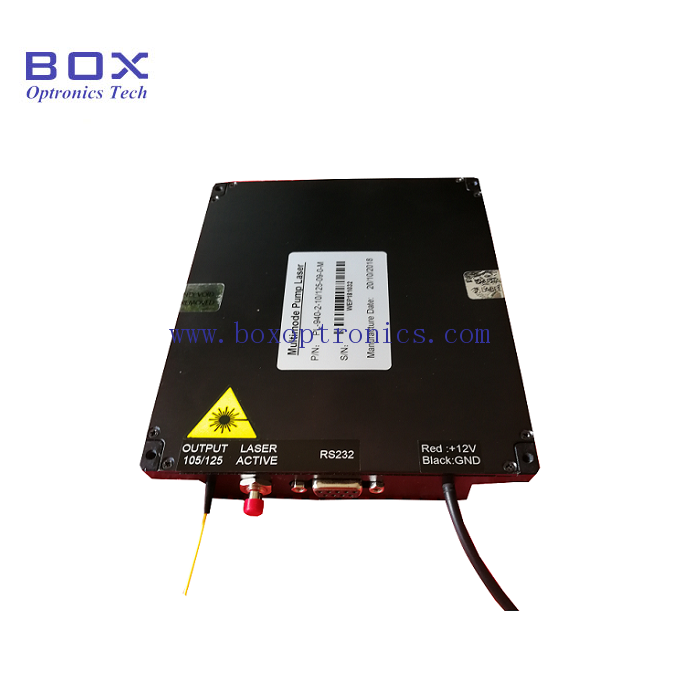

  • 10W Fiber coupled LD 940nm
    10W Fiber coupled LD 940nm
  • 2mW Coaxial packaged SM 1610nm DFB CWDM laser
    2mW Coaxial packaged SM 1610nm DFB CWDM ...
  • High optical isolator fiber coupled 1570nm DFB CWDM laser diode
    High optical isolator fiber coupled 1570...
  • 1550nm TO56 Coaxial package with photodiode for optical test and measurement
    1550nm TO56 Coaxial package with photodi...
  • High power 20mW 1510nm wavelength stabilized 14PIN laser diode
    High power 20mW 1510nm wavelength stabil...
  • PM fiber 1350nm 10mW butterfly laser source
    PM fiber 1350nm 10mW butterfly laser sou...
  • 1270nm 10mW DFB SM Laser diode built-in isolator
    1270nm 10mW DFB SM Laser diode built-in ...
  • PM Polarization maintaining isolator
    PM Polarization maintaining isolator
  • 1X2 Polarization maintaining circulator Fast axis blocked
    1X2 Polarization maintaining circulator ...

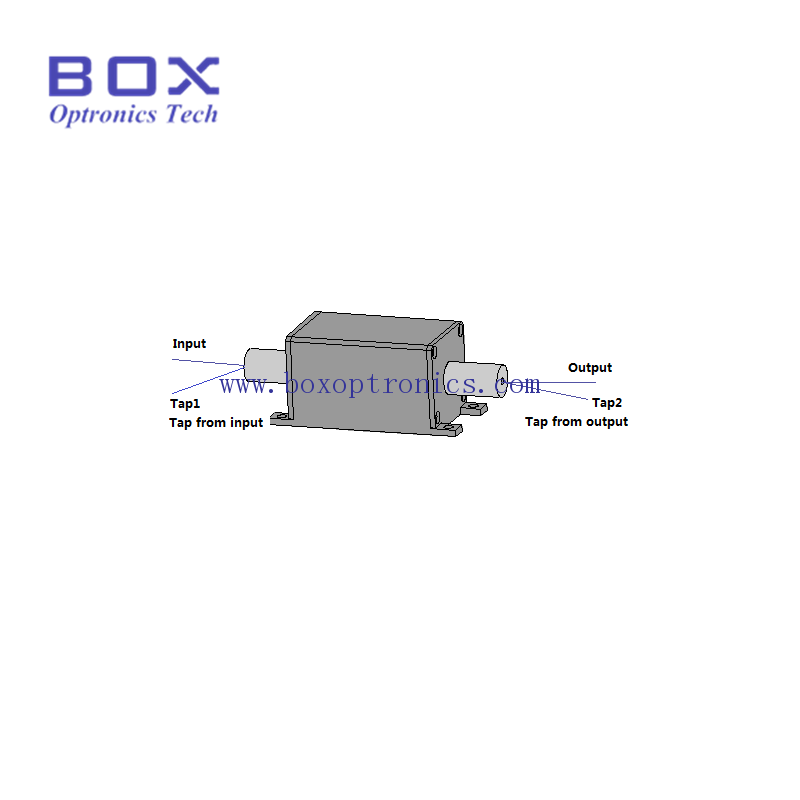

  • Laser power combining module
