Cladding power stripper(PM or Non-PM)
Cladding power stripper is an ideal device for removing residual pump light from cladding in double cladding fiber laser and fiber amplifier, ASE transmission from core leakage to inner cladding, and signal optical mode.

File Name : Format: Size:

Description Feedback
Features
Low signal loss and beam quality degradation;
High stripping efficiency;
High extinction ratio (for PM Fiber);
Stable and reliable.

Applications
High power fiber laser;
High power fiber amplifier.

Electro-Optical Parameters

Port Configuration

1x1

Pump Wavelength

800~1000nm

Signal Wavelength

800~2000nm

Signal Fiber

X/125

X/125

X/400

Cladding Attenuation

>20dB

>18dB

>18dB

Signal IL

<0.13dB

Power Handling

20W, 40W, 100W, 1000W, other

Extinction Ratio

>20dB (Input PER>23dB, For PM type)

Return Loss

>45dB

Pigtail Length

1.0m Bare Fiber or Customized

Package Dimension

70×12×8mm; 100x15x10mm; other

Operating Temperature

0℃ ~+75℃


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

Relate Products
  • 1625nm DFB Pigtailed Laser diode for OTDR Transmission
    1625nm DFB Pigtailed Laser diode for OTD...
  • Adjustable optical fiber attenuator
    Adjustable optical fiber attenuator
  • Low cost 1530nm DFB CWDM laser source for data-com and telecom
    Low cost 1530nm DFB CWDM laser source fo...
  • Coaxial 1430nm DFB CWDM laser with monitoring PIN PD for light source
    Coaxial 1430nm DFB CWDM laser with monit...
  • Coaxial InGaAsP 1370nm DFB SM CWDM laser module
    Coaxial InGaAsP 1370nm DFB SM CWDM laser...
  • High performance 1590nm TO56 DFB laser diode TO-CAN
    High performance 1590nm TO56 DFB laser d...
  • 1450nm TO56 uncooled DFB laser diode for telecommunication
    1450nm TO56 uncooled DFB laser diode for...
  • High power 1350nm InGaAsP laser diode with TO56 flat window package
    High power 1350nm InGaAsP laser diode wi...
  • 1270nm TO56 Packaged LD laser diode for analog transmission system
    1270nm TO56 Packaged LD laser diode for ...
  • SM FIber pigtailed 1550nm 40mW butterfly laser diode for OTDR system
    SM FIber pigtailed 1550nm 40mW butterfly...
  • High power 20mW 1510nm wavelength stabilized 14PIN laser diode
    High power 20mW 1510nm wavelength stabil...
  • Single mode CWDM 1450nm 20mW laser module
    Single mode CWDM 1450nm 20mW laser modul...
  • 1390nm 20mW SM Butterfly BTF package pigtailed laser diode builtin TEC cooler
    1390nm 20mW SM Butterfly BTF package pig...
  • Low cost PM fiber coupled 1290nm 20mW butterfly laser module
    Low cost PM fiber coupled 1290nm 20mW bu...
  • 14PIN butterfly 1610nm 10mW  DFB laser module
    14PIN butterfly 1610nm 10mW DFB laser m...
  • Manufacturer 10mW DFB 1410nm 14PIN laser diode
    Manufacturer 10mW DFB 1410nm 14PIN laser...

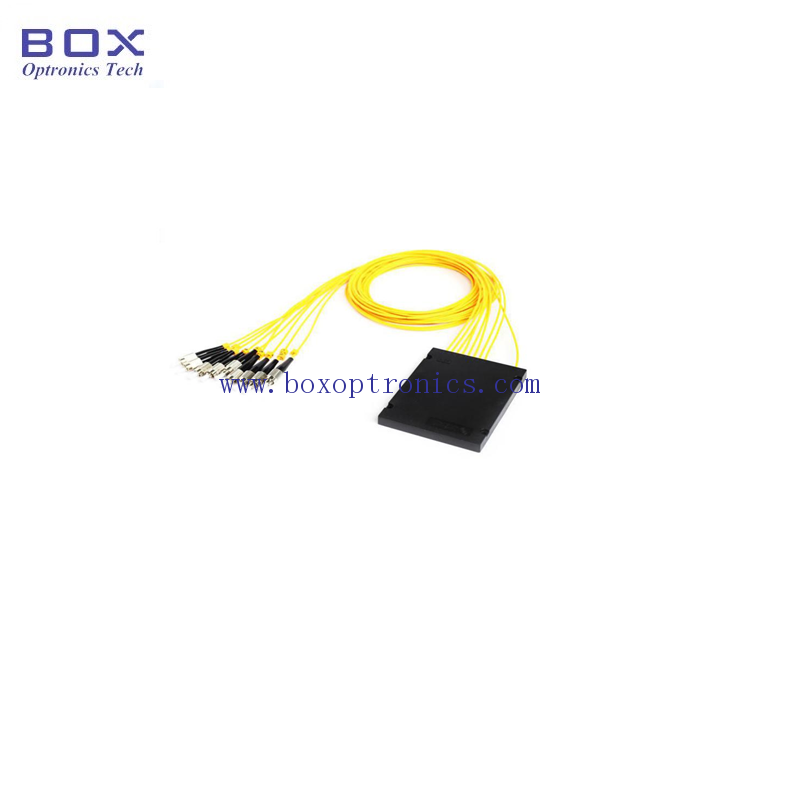

  • 1x4 1x8 Polarization maintaing fiber coupler module
