793nm 10W Conduction-cooled multi-mode fiber coupled diode laser module
The 793nm 10W fiber coupled diode laser from China manufacturer.

File Name : Format: Size:

Description Feedback
Features
793nm Single emitting laser;
10W Output power;
105/125μm 0.22NA Fiber;
High brightness;
RoHS Compliance.

Applications
Medical care;
Pump source;
Material processing.

Electro-Optical Parameters

Parameter

Symbol

Min

Typical

Max

Unit

Operating output power

Pout

10.0

-



W

Range of available wavelength

λ

790

793

796

nm

Spectral width @ FWHM

Δλ



3.5

-

nm

Threshold current

Ith

-

0.2

0.5

A

Operating current at Pout

Iop



3.5

4.0

A

Forward voltage at Pout

Vf



5.5

-

V

Power conversion efficiency

-



45%



-

Slope efficiency

η



2.7



W/A

Wavelength temperature coefficient

Δλ/ΔT

 -

0.3

-

nm/℃

Fiber core/cladding diameter

DCOR



105/125



µm/µm

Fiber numerical aperture

NA



0.22



-


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

Relate Products
  • 1mm Actiave area silicon photodiode
    1mm Actiave area silicon photodiode
  • 105um Multimode fiber coupled 960nm 10W diode laser for medical
    105um Multimode fiber coupled 960nm 10W ...
  • 793nm 20W 105um Fiber coupled laser diode module
    793nm 20W 105um Fiber coupled laser diod...

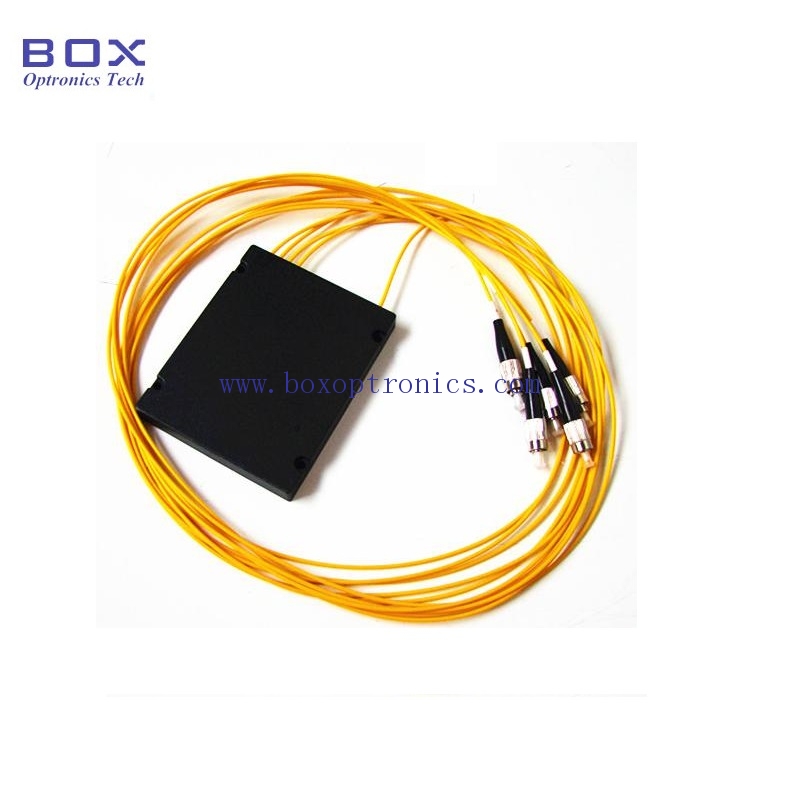

  • ABS Box PLC optical splitter
