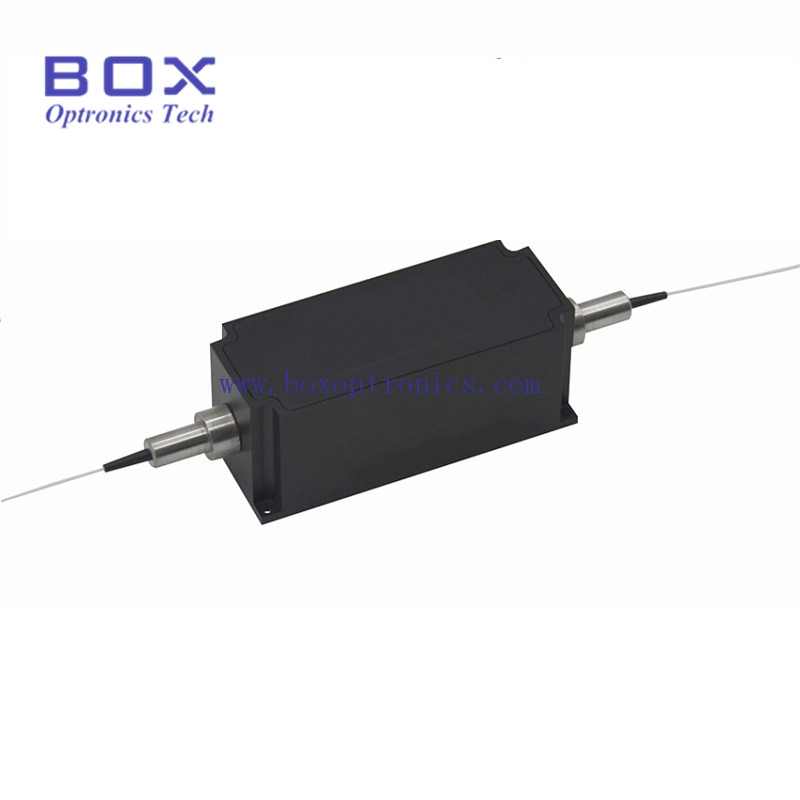

1064nm 20W High power optical isolator

1064nm 20W High power optical Isolator with low insertion loss, high extinction ratio, high reture loss and high handling power for pump laser, EDFA.

File Name : Format: Size:

Description Feedback

Features

Low insertion loss;
High isolation;

High return loss;

High stability & reliability.

Applications

Polarization Maintaining Fiber Amplifier;

Fiber laser;

Fiber amplifier;

Testing instrument.

Electro-Optical Parameters

Parameters	Unit	Value
Center Wavelength	nm	980, 1030 or 1064
Operating Wavelength Range	nm	±5
Typ. Peak Isolation at 23℃	dB	30
Min. Isolation at 23℃	dB	25
Max. Insertion Loss at 23℃	dB	1.0
Max. Polarization Dependent Loss at 23℃, only for PI	dB	0.2
Min. Extinction Ratio at 23℃, only for PM	dB	20
Min. Return Loss(Input /Output)	dB	45
Max. Average Optical Power	W	2
Max. Peak Power for ns Pulse	kW	10
Max. Tensile Load	N	5
