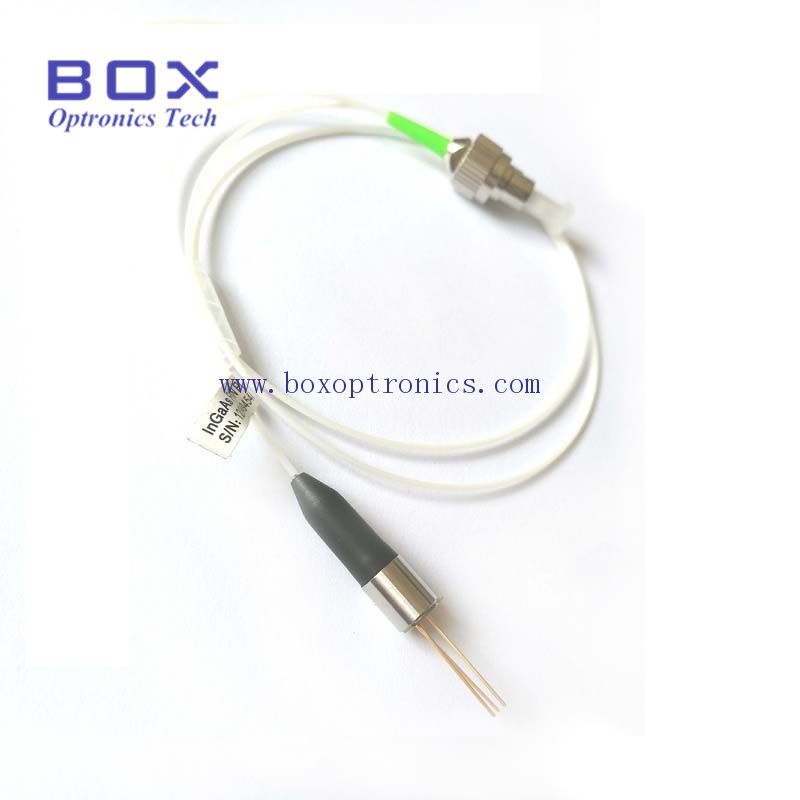

Coaxial pigtail receptacle 1590nm DFB CWDM laser diode module
The 1590nm Multiple Quantum Well (MQW) structured DFB laser diode coaxial module with single mode fiber.

File Name : Format: Size:

Description Feedback
Features
Signal rate up to 10Gb/s;
FP&DFB&CWDM Coaxial packaging;
Built-in InGaAs/PIN monitor;
High reliability, Long operation life.

Applications
Optical transmitter of data signal;
Optical transmitter of analog signal;
Optical Bidi module and optical transceivers;
Test equipment.

Electro-Optical Parameters

Parameters

Symbol

Test Conditions

Min.

Typ.

Max.

Unit

Peak Optical Output Power

PO

If=Ith+20mA

1.8

2

-

mW

Threshold Current

Ith

TL=25℃

-

10

15

mA

Laser Forward Voltage

Vlf

CW

-

1.2

2.0

V

Monitor Current

Irmon

CW, If=Ith+20mA, VRD=5V

100

-

800

μA

Monitor Dark Current

ID

IF=0mA, VRMON=5V

-

0.01

0.2

μA

Capacitance (PD)

Ct

Vrd=5V, f=1MHz

-

5

15

pF

Center Wavelength

λC

CW. If=Ith+20mA, **=n

1587

1590

1593

nm

Optical Isolation

-

T=25℃

30

-

-

dB

Tracking error

TE

Im hold(@Pf=1mW(25℃))

-1

-

1

dB

Spectral Width(-20dB)

△λ

Po = 2mW, TC =0 to 70℃

-

0.1

1

nm


Package

Original Carton Package;
As customers‘ requirement.
