1060nm Thin-Film bandpass filter
Filter WDM (FWDM) is a bi-directional component used to combine and separate optical signals in a range of network applications.

File Name : Format: Size:

Description Feedback
Features
High transmittance;
High isolation;
Low polarization dependent loss;
Temperature effects of small;
Stable and reliable performance.

Applications
FTTX online monitoring;
OTDR monitoring module;
1625/1650nm filter system.

Electro-Optical Parameters

Parameters

Unit

Specification

Channel Wavelength

nm

960-990 (or 1020-1080)

Channel Passband(@-0.5dB bandwidth)

nm

1020-1080 (or 960-990)

Maximun Insertion Loss

dB

≤0.8

Isolation

dB

≤0.6

Polarization Dependent Loss

dB

≥25

Polarization Mode Dispersion

ps

≥13

Return Loss

dB

≥45

Power Handling

mW

≤300

Dimension

Bare fiber or 900um

mm

Φ5.5 x 34

2.0mm or 3.0mm

90x20x10 or 100x80x10


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

Relate Products
  • 2mm Effective area silicon photodiode
    2mm Effective area silicon photodiode
  • High responsibility 0.3mm TO46 Photodiode
    High responsibility 0.3mm TO46 Photodiod...
  • 10 W 915nm 0.22NA Fiber coupled diode laser
    10 W 915nm 0.22NA Fiber coupled diode la...
  • 1060nm,1480nm Polarization insensitive optical isolator
    1060nm,1480nm Polarization insensitive o...
  • 1x2 980nm Single mode fiber coupler
    1x2 980nm Single mode fiber coupler
  • 1625nm DFB Pigtailed Laser diode for OTDR Transmission
    1625nm DFB Pigtailed Laser diode for OTD...
  • Coaxial pigtail receptacle 1590nm DFB CWDM laser diode module
    Coaxial pigtail receptacle 1590nm DFB CW...
  • 2.5G SM fiber 1350nm CWDM DFB pigtail laser module
    2.5G SM fiber 1350nm CWDM DFB pigtail la...
  • High stability 1550nm FP pigtail laser module
    High stability 1550nm FP pigtail laser m...
  • Quotation 1530nm uncooled multi-quantum-well DFB Distributed Feedback TO56 laser diode
    Quotation 1530nm uncooled multi-quantum-...
  • High quality 1310nm TO56 Laser diode integrated aspheric focusing lens
    High quality 1310nm TO56 Laser diode int...
  • High performance 1570nm 20mW single frequency laser
    High performance 1570nm 20mW single freq...
  • CWDM 1370nm 20mW butterfly-packaged laser diode
    CWDM 1370nm 20mW butterfly-packaged lase...
  • Supplier 10mW 1450nm butterfly laser diode with monitor photodiode
    Supplier 10mW 1450nm butterfly laser dio...
  • 1x2 2x2 PI PMC Polarization-insensitive fused PM fiber coupler
    1x2 2x2 PI PMC Polarization-insensitive ...
  • 1282.26nm DFB LAN WDM laser source
    1282.26nm DFB LAN WDM laser source
  • 2X2 Polarization maintaining circulator Fast axis blocked
    2X2 Polarization maintaining circulator ...
  • 1030nm Polarization maintaining circulator Both axis working
    1030nm Polarization maintaining circulat...
  • 1567nm SM DFB 10mW butterfly laser diode
    1567nm SM DFB 10mW butterfly laser diode
  • 45° Rotation angle faraday mirror for EDFA
    45° Rotation angle faraday mirror for ED...

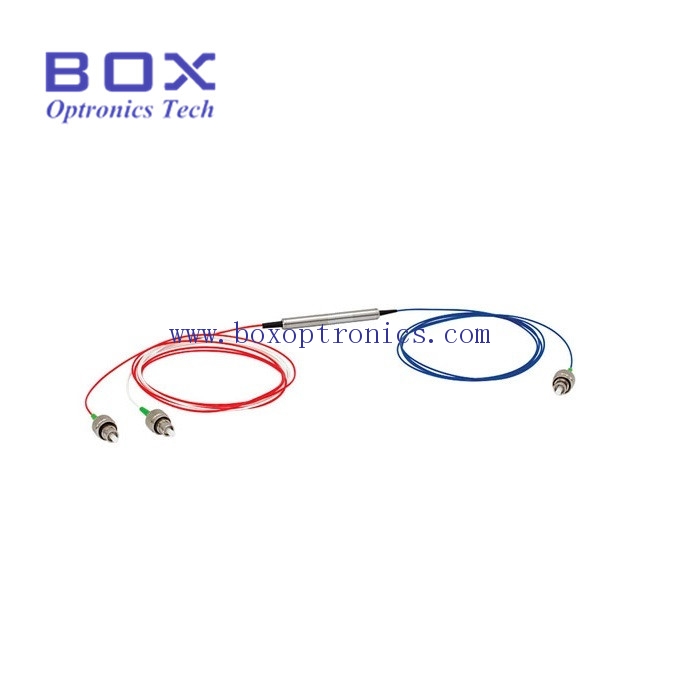

  • High power circulator
    High power circulator
  • Low cost 1552.52nm 193.1THz 100mW butterfly laser
    Low cost 1552.52nm 193.1THz 100mW butter...
  • (1+1)x1 or (2+1)x1 High power pump and signal combiners(PM or Non-PM)
    (1+1)x1 or (2+1)x1 High power pump and s...
  • 1270nm to 1610nm CWDM TO56 Aspherical Lens
    1270nm to 1610nm CWDM TO56 Aspherical Le...
  • 1653.7nm DFB  LD cooled coaxial pigtailed TOSA for methane detection
    1653.7nm DFB LD cooled coaxial pigtaile...

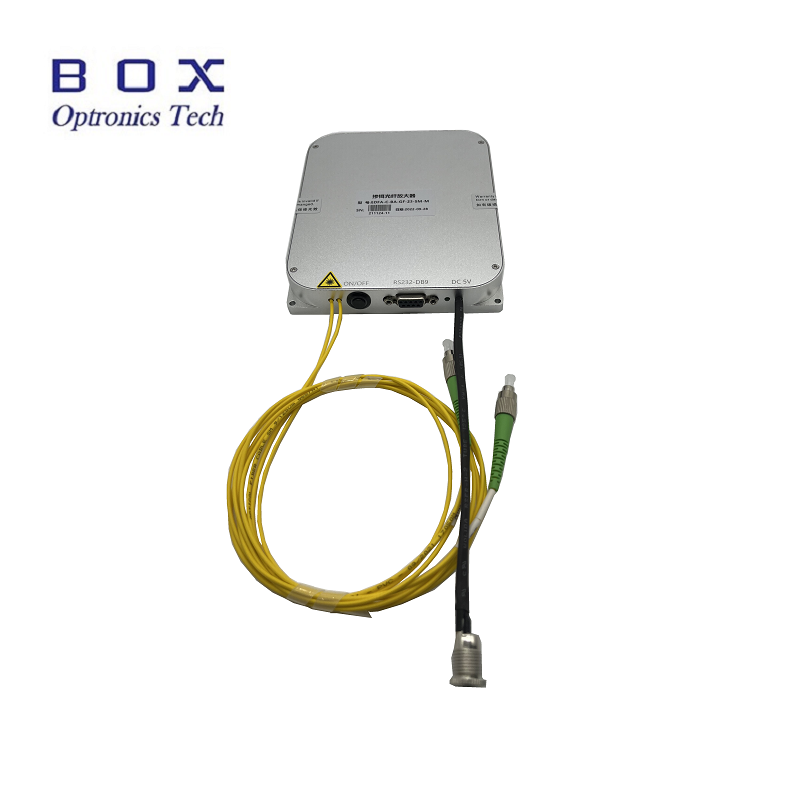

  • C Band Pulse Erbium doped fiber amplifier
    C Band Pulse Erbium doped fiber amplifie...
  • C L Erbium Doped Fiber Amplifier EDFA
    C L Erbium Doped Fiber Amplifier EDFA
  • 2.5Gbps 1650nm DFB Laser uncooled TO package with aspherical lens
    2.5Gbps 1650nm DFB Laser uncooled TO pac...

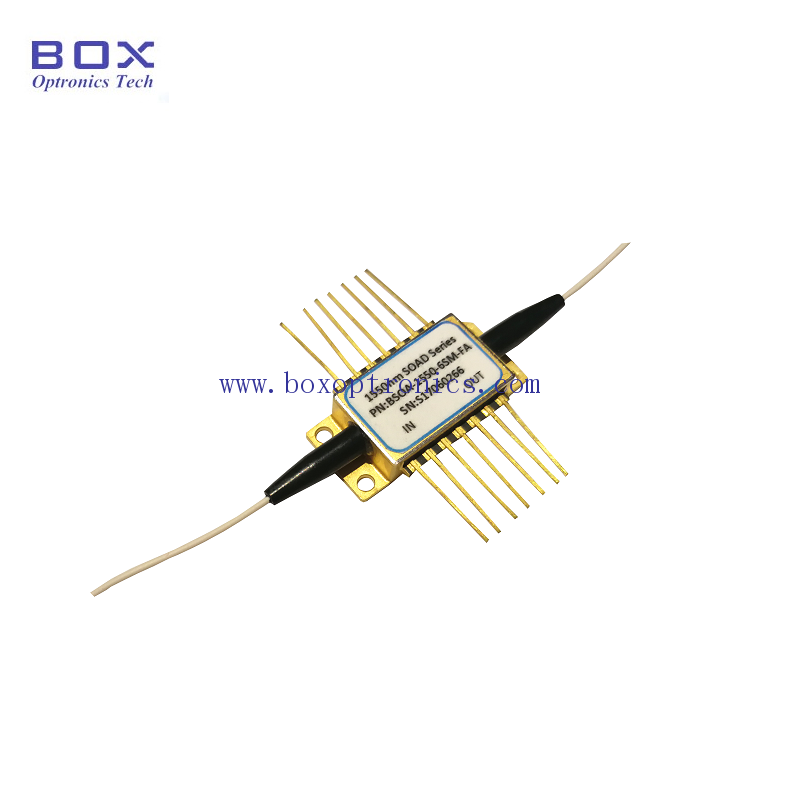

  • SM PM fiber coupled 1550nm SOA optical amplifier for optic connection and switch
    SM PM fiber coupled 1550nm SOA optical a...
  • 1550nm Temperature FBG Sensor
    1550nm Temperature FBG Sensor

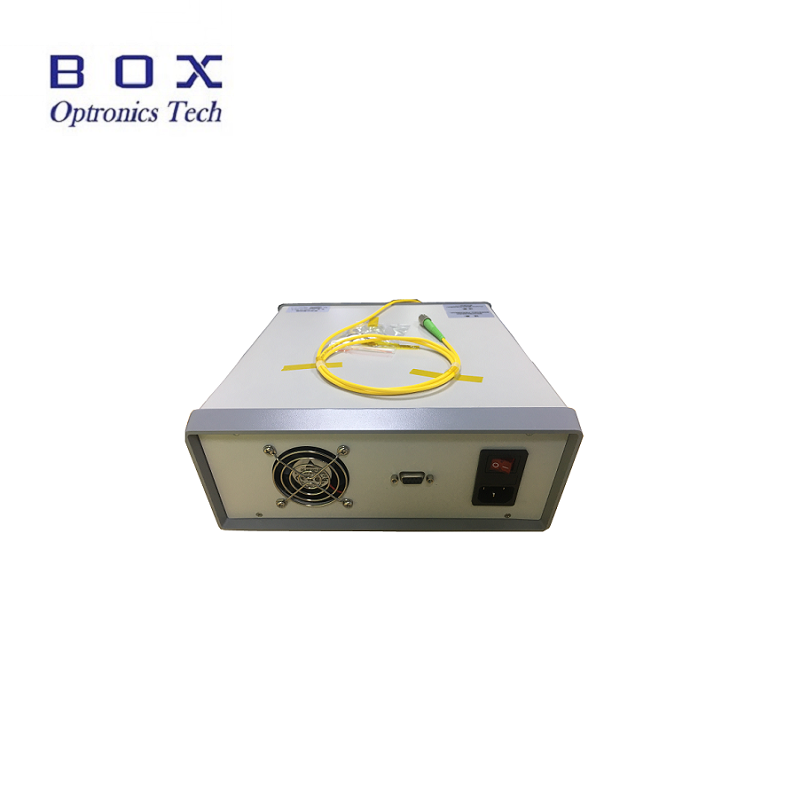

  • High power fiber optical amplifier
