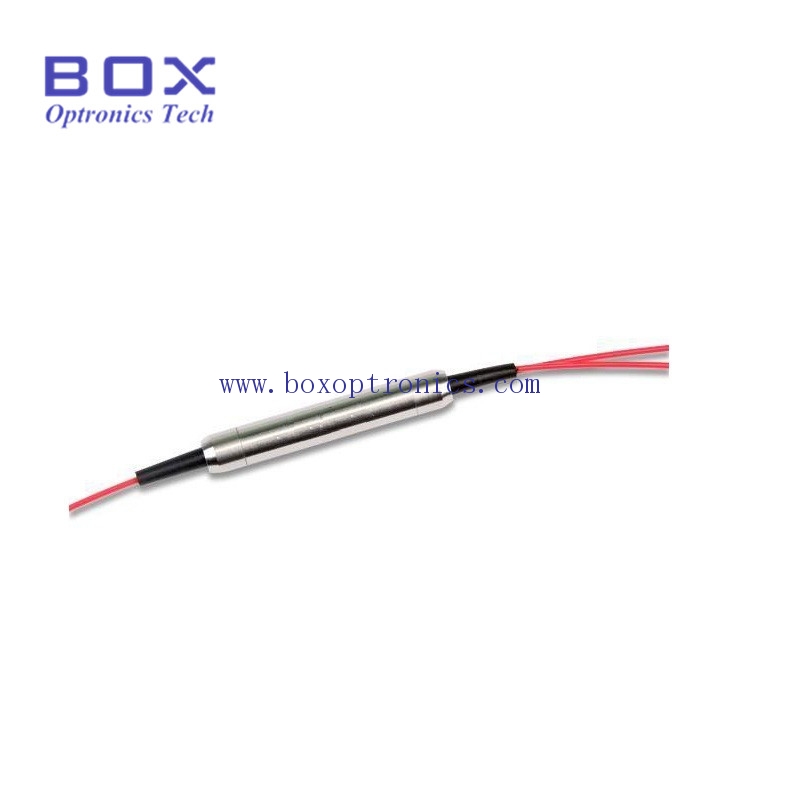

1064nm 300mW Optical isolator
1064nm 300mW High power isolator is a device designed with low insertion loss, high extinction ratio, high retur loss and high handling power.

File Name : Format: Size:

Description Feedback
Features
Low insertion loss;
High isolation;
High return loss;
High stability & reliability.

Applications
Communication systems;
Test instruments;
Fiber sensor;
Research.

Electro-Optical Parameters

Parameter

Unit

Value

Stage

-

Single

Dual

Grade

-

P

A

P

A

Center Wavelength

nm

1064

Operating Wavelength Range

nm

±5

Typ. Peak Isolation

dB

40

38

55

52

Typ. Insertion Loss at 23℃

dB

1.5

1.6

2.4

2.6

Min. Return Loss (input/output)

dB

50/50

50/50

50/50

50/50

Max. Optical Power(CW)

mW

300

Max. Tensile Load

N

5

Fiber Type

-

Hi1060 fiber or SCF 10/125 fiber

Operating Temperature

℃

-5~+50

Storage Temperature

℃

-40~+85


Package

Original Carton Package;
As customers‘ requirement.

Shipping
5-10 Working days after receive the payment;
Shipment: Air transportation(DHL / UPS / TNT / Fedex / EMS / CHINA POST);
Shipping fee depends on the weight and size.


Payment
For large orders: T/T, Credit card;
For small orders: Paypal are accepted.

Warranty
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
